Catalog No. : 2TLA050007R0602

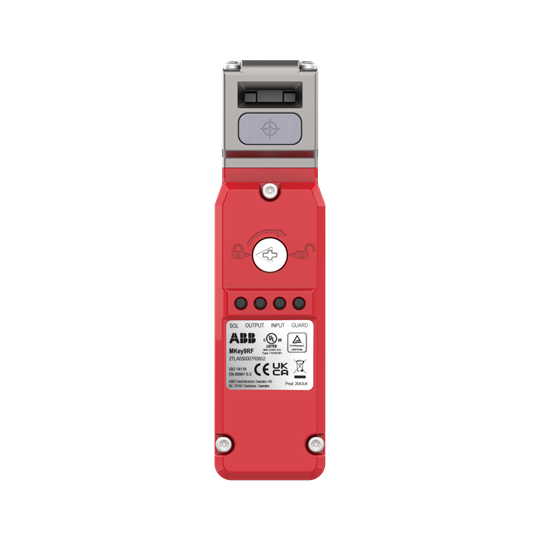

Description:  MKEY9RF PLASTIC M20 SWITCH

UPC: 7350024486834

Solenoid safety switch with RFID technology reaching PL e or SIL 3 for the interlock function, rugged polyester housing and stainless steel head, 1xM20 Conduit entry, 24 V DC power to unlock. Safe lock function reaching PL e or SIL 3 in combination with a suitable accessory. Two safe OSSD inputs and two safe OSSD outputs. Delivered without RFID key. MKey are mechanical safety switches used for monitoring doors and hatches. The switch is mounted on the frame and the actuator key on the moving part of the guard. All MKey models have a safe interlocking function. Some MKey models can be locked and depending on the locking signal they can be used either as process locks or safety locks (with a safe unlocking function). MKey switches are available in different material and sizes in order to meet the requirements of different applications.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Safety Sensors, Switches, Locks & Gate Boxes

Type

Safety Lock

Specifications

Product Class

Safety Locks & Process Locks

Product Main Type

Mkey RFID

Supply Voltage

24VDC

Outputs

OSSD

Number of Outputs

2

Degree of Protection

IP67

Classifications

ETIM 7

EC002593 - Position switch with guard locking

ETIM 8 (Etim8)

EC002593 - Position switch with guard locking

Dimensions

Product Net Depth / Length

51 mm

Product Net Height

176 mm

Product Net Width

46 mm

Product Net Weight

0.7kg

Safety Information

Performance Level

Up to e
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
