Catalog No. : 2TLA020070R2100

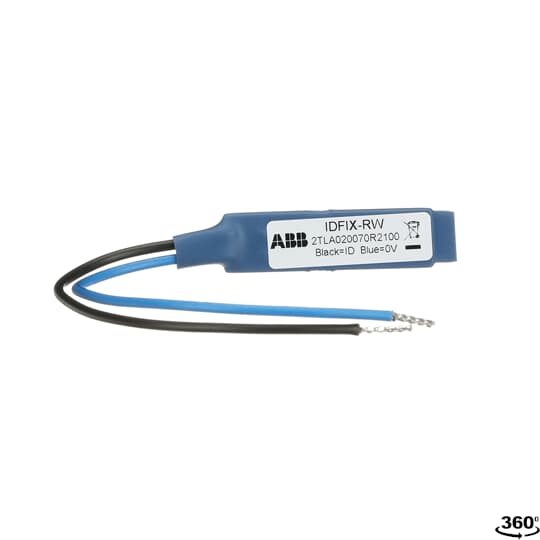

Description:  IDFIX-RW IDENTIFIER PROGRAMMABLE

UPC: 7320500410820

Identifier, read/write, for assigning an address to the Pluto it is connected to. Each Pluto connected to the Pluto safety bus needs an IDFIX. The IDFIX number is programmable, i.e. the user can choose the number. IDFIX is an identifier circuit which gives each Pluto an address on the bus. It contains an identification code which can be read by the system. The identification code is declared in the PLC program so that the correct part of the PLC program is executed by each specific Pluto. The use of IDFIX is mandatory in a multi-Pluto project, but voluntary if a unit works alone. If one Pluto in a multi-Pluto project needs to be replaced it is possible to let the new Pluto selfload the PLC program from another Pluto on the bus. The IDFIX will ensure that the new Pluto has the correct address on the bus.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Safety Accessories

Specifications

Supply Voltage

N/A

Product Main Type

Pluto accessory

With Safety Bus

N/A

Safe Outputs

N/A

Safe inputs/non-failsafe outputs/safe analog inputs

N/A

Product Class

Accessories for Programmable Safety Controller

Degree of Protection

N/A

Classifications

ETIM 4

EC001422 - PLC function/technology module

ETIM 5.0

EC001422 - PLC function/technology module

ETIM 6.0

EC001583 - Accessories for bus system

ETIM 7

EC001583 - Accessories for bus system

ETIM 8 (Etim8)

EC001583 - Accessories/spare parts for bus system

Dimensions

Product Net Depth / Length

200 mm

Product Net Height

7 mm

Product Net Width

12 mm

Product Net Weight

0.01kg

Safety Information

Performance Level

N/A
