Catalog No. : 2TLA020054R0200

Description:  TINA 3A ADAPTER UNIT TYPE ABB

UPC: 7350024451849

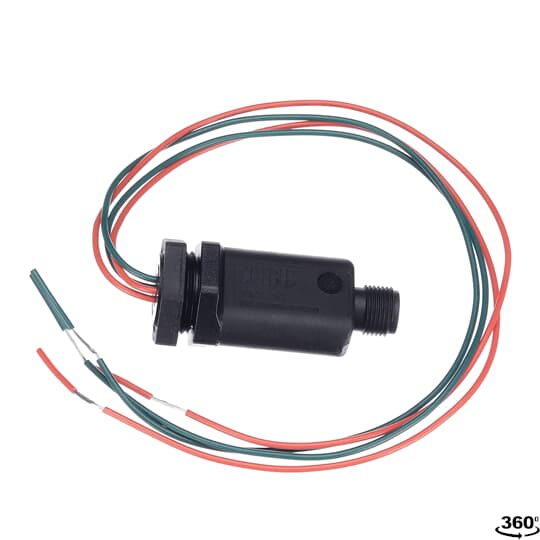

Tina 3A is used for adaptation of devices with two positively driven force-guided contacts like emergency stop buttons and key switches, to the DYNlink solution. Tina 3A is mounted directly on the device enclosure to a M20 cable entry and has a M12-5 male connector for connection to the DYNlink loop. Tina is available in several versions depending on the type of safety component that is connected to the Vital, Pluto or B&R X20 circuit.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Safety Accessories

Type

Tina Adaptor

Specifications

Supply Voltage

24

Product Main Type

Tina Adaptor

Product Class

Tina Adaptors

Degree of Protection

IP67

Classifications

ETIM 4

EC001584 - I/O device for bus system

ETIM 5.0

EC001584 - I/O device for bus system

ETIM 6.0

EC001584 - I/O device for bus system

ETIM 7

EC001584 - I/O device for bus system

ETIM 8 (Etim8)

EC001584 - I/O device for bus system

Dimensions

Product Net Depth / Length

24 mm

Product Net Height

24 mm

Product Net Width

57 mm

Product Net Weight

0.026kg

Sustainability

Environmental product declaration

Persistent organic pollutants (POPs) declaration - Safety Products

PFAS declaration
