Catalog No. : 2TLA020007R6900

Description:  JSTD25K TWOHAND CONTROL

UPC: 7350024479690

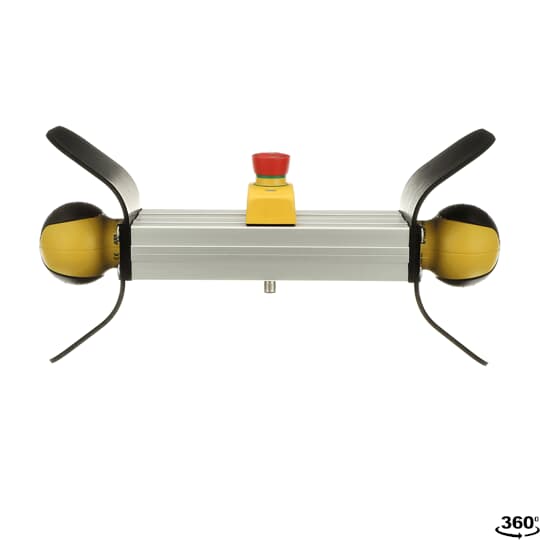

Two-hand device with two JSTD1-B Safeballs and one emergency stop button Smile 10 EK. Each Safeball is mounted on a side of a 44x88 extruded aluminum profile designed for two-hand applications. The Smile 10 EK emergency stop button is mounted on top. Safeballs and Smile are pre-wired to a M12-8 male connector. The safeballs have protective flanges.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Safety Control Devices

Type

Two Hand Station

Specifications

Product Class

One and Two Hand Control Devices

Product Main Type

JSTD25

Supply Voltage

24VDC

Degree of Protection

IP65

Classifications

ETIM 4

EC001260 - Two-hand control device

ETIM 5.0

EC001260 - Two-hand control device

ETIM 6.0

EC001260 - Two-hand control device

ETIM 7

EC001260 - Two-hand control device

ETIM 8 (Etim8)

EC001260 - Two-hand control device

Dimensions

Product Net Depth / Length

90.5 mm

Product Net Height

189 mm

Product Net Width

364 mm

Product Net Weight

1.52kg

Safety Information

Performance Level

Up to e

Sustainability

Environmental product declaration

MNS Rear Low Voltage Switchgear EPD

Persistent organic pollutants (POPs) declaration - Safety Products

PFAS declaration

MNS_EcoSolutions

MNS 3.0 Low Voltage Switchgear EPD
