Catalog No. : 2TLA010070R0001

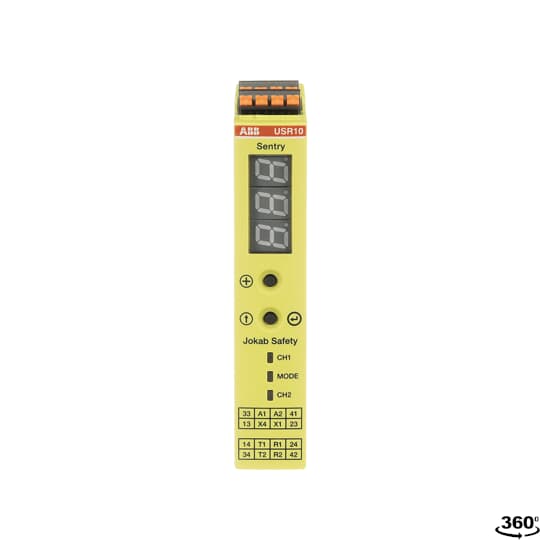

Description: SENTRY USR10P SAFETY RELAY
UPC: 7350024486346
Universal safety relay/safety timer with delayable relay outputs 3NO+1NC, +24 VDC power supply and push-in spring terminals.
For monitoring of safety devices with contacts, 1 or 2 equivalent or antivalent channels, safety devices with OSSD outputs, two-hand devices, safety mats and safety edges/bumpers.
Timer function 0-999 seconds with a better accuracy than 1%: OFF-delay, ON-delay, Time bypass and Time reset.
A display on front facilitates configuration and troubleshooting by displaying error codes and error log. A custom configuration can be protected by password.
Manual or automatic reset selectable.
View More
View Less
For more info visit:
electrification.us.abb.com
Descriptors
|
Category |
Safety Relays |
Specifications
|
Supply Voltage |
24VDC |
|
Monitoring of Emergency Stops |
Yes |
|
Safe Output Expansion |
No |
|
Monitoring of Gate Switches |
Yes |
|
Monitoring OSSD Devices (ex. Light Curtains) |
Yes |
|
Two Hand Control |
Yes |
|
Safety Mats/Edges and Bumpers |
Yes |
|
Timer Function |
Yes |
|
Outputs |
Failsafe (Relay, delayed) 3NO + 1NC |
|
Product Class |
Sentry Safety Relays |
|
Product Main Type |
USR |
|
Degree of Protection |
IP20 |
Classifications
|
ETIM 8 (Etim8) |
EC001449 - Device for monitoring of safety-related circuits |
|
ETIM 7 |
EC001449 - Device for monitoring of safety-related circuits |
Dimensions
|
Product Net Height |
120 mm |
|
Product Net Width |
22.5 mm |
|
Product Net Weight |
0.229kg |
|
Product Net Depth / Length |
120 mm |
Safety Information
|
Performance Level |
Up to e |
