Catalog No. : 2729

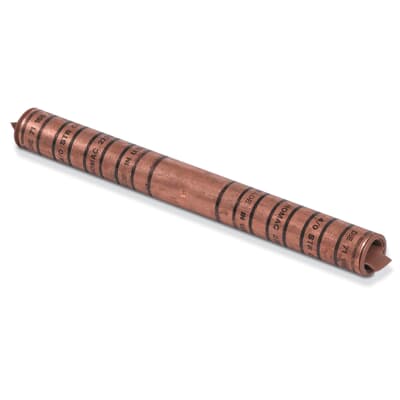

Description: CU FULL TENSION COMP SPLICE 4/0
UPC: 783786765188
Copper Full Tension Compression Splices, wire size 4/0 Stranded Copper, length 8-3/8 inch, Outside Diameter 7/8 inch, installing dies 71, 840, 168. Pre-filled with Oxide Inhibitor and Capped
View More
View Less
For more info visit:
electrification.us.abb.com
- All Splices Marked with Wire Size, Installation Die Codes and Compression Locations, Providing Easy Identification for Easy Installation
- Designed to Develop 95 Percent or More of the Conductor's Rated Strength
- Meets or Exceeds ANSI C119.4 Specifications
Descriptors
|
Category |
Wire or cable compression splice |
|
Special Features |
All splices are marked with conductor size, installing die references, and compression locations. Designed to develop 95% or more of the conductors rated strength. |
Specifications
|
Connection |
Compression |
|
Conductor Range |
4/0(7-19) STR |
|
Number Of Conductors |
2 |
|
Material |
Copper |
|
Insulation |
None |
Classifications
|
Brand Name |
Homac |
|
Standard |
ANSI C119.4 |
Dimensions
|
Size |
8-3/8 inch long |
Documents/Support Tools
|
SDS |
