Catalog No. : 1SVR360060R1001

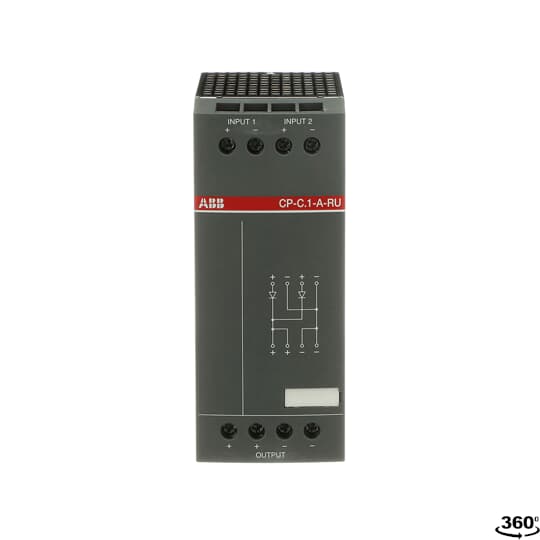

Description: CP-C.1-A-RU Redundancy unit for power supplies In: 2x20A, Out: 1x40A
UPC: 4013614523816
Descriptors
|
Category |
Power Supplies |
Specifications
|
Product Main Type |
CP-C.1 |
|
Input Voltage |
13 ... 28 V DC |
|
Output Voltage |
24 V DC |
|
Output Current |
60 A |
|
Function |
Redundancy unit |
|
Rated Input Voltage |
24 V DC |
|
Rated Output Voltage |
24 V DC |
|
Rated Output Current |
40 A |
|
Degree of Protection |
Housing |
|
Pollution Degree |
2 |
|
Connecting Capacity Input Circuit |
Flexible with Ferrule 2.5 ... 10 mm² |
|
Connecting Capacity Output Circuit |
Flexible with Ferrule 2.5 ... 10 mm² |
|
Tightening Torque |
Input Circuit 1.2 N-m |
|
Wire Stripping Length |
Input Circuit 10 mm |
|
Recommended Screw Driver |
Input Circuit 0.8 x 4 |
|
Mounting Position |
Position 1, 7 |
|
Mounting on DIN Rail |
TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715 |
|
Standards |
EN 50581 |
|
Ambient Air Temperature |
Operation -25 ... +70 °C |
|
Resistance to Vibrations acc. to IEC 60068-2-6 |
10-58 Hz, ±0.15 mm, 58-150 Hz, 2g, 10 sweep cycles each axis |
|
Resistance to Shock acc. to IEC 60068-2-27 |
30g / 3 shocks / 6 ms |
|
Resistance to Damp Heat acc. to IEC 60068-2-30 |
Test Db: 55°C, 2 cycles |
|
RoHS Status |
Following EU Directive 2011/65/EU |
|
Connecting Capacity Input Circuit UL/CSA |
Flexible 12-8 AWG |
|
Connecting Capacity Output Circuit UL/CSA |
Flexible 12-8 AWG |
|
Tightening Torque UL/CSA |
Input Circuit 1.2 in-lb |
|
Object Classification Code |
T |
Classifications
|
ETIM 5.0 |
EC002540 - DC-power supply |
|
ETIM 6.0 |
EC002540 - DC-power supply |
|
ETIM 7 |
EC002540 - DC-power supply |
Dimensions
|
Product Net Width |
56.4 mm |
|
Product Net Height |
129.4 mm |
|
Product Net Depth / Length |
136 mm |
|
Product Net Weight |
1.04 kg |
Package Information
|
Package Level 1 Width |
90 mm |
|
Package Level 1 Depth / Length |
155 mm |
|
Package Level 1 Height |
165 mm |
|
Package Level 1 Gross Weight |
1.17 kg |
|
Package Level 1 EAN |
4013614523816 |
|
Package Level 1 Units |
1 piece |
Ordering
|
Minimum Order Quantity |
1 |
|
Customs Tariff Number |
85044082 |
|
ECCN |
N |
|
ECN |
N |
Electromagnetic Compatibility
|
Electrostatic Discharge (ESD Immunity) acc. to IEC 61000-4-2 |
Level 4 Air Discharge 15 kV |
|
Radiated Electromagnetic Field Immunity acc. to IEC 61000-4-3 |
Level 3 10 V/m |
|
Conducted Disturbances Immunity acc. to IEC 61000-4-6 |
Level 3 10 V |
|
Electromagnetic Compatibility (EMC) |
Immunity - Class B |
