Catalog No. : 168FLR1B5240

Description:  15KV FUSE ELBOW SIZE 1

UPC: 75114214896

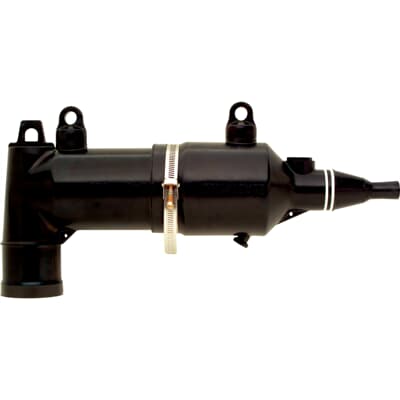

Molded Current Limiting Fuse Housing, Nominal Fuse Voltage Rating 8.3kV, Fuse Test Port - Two Capacitive Test Ports, Small Housing, Cable Insulation Diameter 0.635 inch - 0.905 inch / 16-23mm, Bi-Metal Conductor size 1/0 AWG Stranded/Compressed, 2/0 AWG Solid/Compact.
View More View Less
For more info visit:  electrification.us.abb.com

Descriptors

Category

Electrical connector assembly

Special Features

Full-Range Current-Limiting Fusing with 50kA Interrupting Capability. Hotstick Operable 15kV Loadbreak Elbow Switching.

Application

Protect Light Duty Underground Distribution Systems

Specifications

Conductor Range

1/0 STR/COMPR AWG , 2/0 SOL/COMPT AWG

Material

EPDM Rubber

Color

Black

Voltage Rating

8.3 kV

Amperage Rating

200 A

Insulation

Yes, EPDM Rubber

Temperature Rating

-40 to +65 C

Classifications

Brand Name

ELASTIMOLD

Standard

IEEE 386, ANSI C37.40, ANSI C37.41, ANSI C37.47

Dimensions

Size

Length 16.87 inches from bottom to center of Bushing

Documents/Support Tools

Instruction Sheet

Click here

Sales Drawing

Click here

Support/Tools

Click here
