Catalog No. : U610F

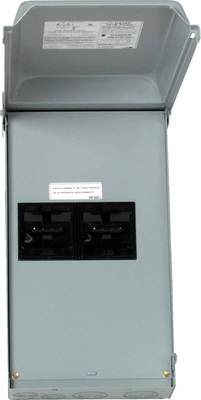

Description:  MIDWEST 60/60A HEAT PUMP F 10HP N3R

UPC: 784567561807

Multiple disconnect devices are offered for heat pump applications that require individual disconnects for the heating and cooling cycles. All pullers are removable or reinstallable in the OFF position for user safety during equipment maintenance. Their UL listing includes the ability to field replace the 60 Ampere puller in the left fuse block with a 30 Ampere puller (FH35-2) for installation flexibility but prohibits the interchangeability of pullers between fuse blocks to insure the proper fuse/puller combination is always reinstalled into the proper fuse block.
View More View Less
For more info visit:  midwestelectric.com

Descriptors

Category

Heat Pump Disconnects

Specifications

Phase

1

Amps

100 A

Enclosure

Metallic

Circuit Protection

Fused Pull-Out

Receptacles

None

AIC

10,000

Cabinet Size

9 X 17

Horse Power Rating

10

Neutral Bar

NU100B2

Unit Weight

13.5 lb

Volts

120/240

Classifications

Standard Package

1

Stock Class Code

Stock

Approvals

Certification

UL/CUL
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
