Catalog No. : XC730-5

Description:  CBLLK SSCR CONN .45-.61IN STL 5BAG

UPC: 785991183139

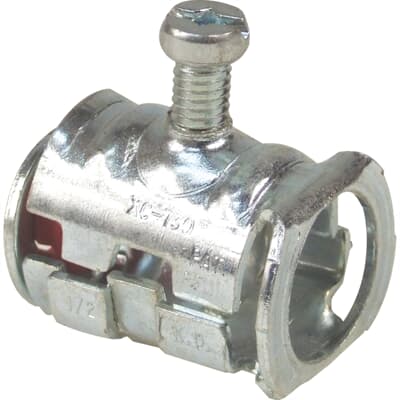

Cable Lok Set Screw Connector, Size Range 0.450 Inch - 0.610 Inch or 1/2 Inch Knockout, AC Steel 14/2 14/3 14/4 12/2 12/3 12/4 10/2, AC Aluminum Interlocked 14/2 14/3 14/4 12/2 12/3 12/4 10/2, MC (I) Steel 14/2 14/2 14/4 12/2 12/3 12/4 10/2 10/3, MC (I) Aluminum 14/2 14/3 14/4 12/2 12/3 12/4, Flex RW 3/8 Steel and Aluminum 10/2 10/3, Material Zinc Plated Steel with Nylon Insulator, Bag of 5
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Set-Screw Connectors

Specifications

Material

Steel

Finish

Zinc-Chromatic

Temperature Rating

221 F , 105 C

Classifications

Brand Name

Steel City

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC001180 Screw connection for protective metallic hose

Nominal size in inch

1/2 inch

Model

Straight

Revolving thread

N

Construction type

No thread

One-piece

Y

Material housing

Zinc die-cast

Surface protection

Untreated

Approved in combination with protective conduit DIN EN 61386-23

N

Approved in combination with protective conduit FI

N
