Catalog No. : WRS154
Description: COMP STIRRUP W/CNTX 2-6ASCR 4SLD 2
UPC: 783786051656

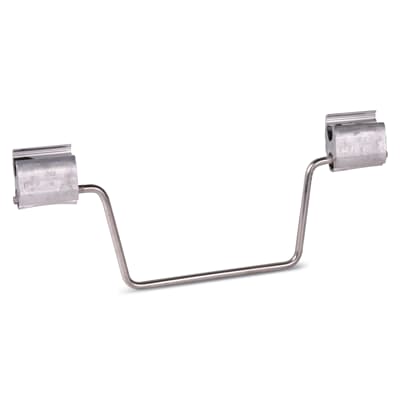

Aluminum Compression H-Tap Connector with Tin Plated Copper Stirrup, Contax Filled, Wire Range: 2-6 ASCR, 1 Stranded -6 Solid AWG, Stirrup #4 Solid Copper, Wing Shaped, 2 H-Tap Connectors on Stirrup. 10 inch x 2-15/16 inch.
View More
View Less
For more info visit:
tnb.ca.abb.com/en/
- Guard Main Conductors Against Arcs - Perfect for when Hot-Line Taps are Installed
- Utilize Standard WR Connectors and Plated Bails for High Conductivity and Corrosion Resistance
Descriptors
|
Category |
Wire connectors |
|
Special Features |
Guard Main Conductors Against Arcs - Perfect for when Hot Line Taps are Installed. Utilize Standard Wide Range Connectors and Plated Copper Bails for High Conductivity and Corrosion Resistance. |
|
Application |
Protect Main Conductors from Arcing Damage. |
Specifications
|
Connection |
Compression |
|
Material |
Aluminum with Tin Plated Copper Bails |
|
Insulation |
None |
Classifications
|
Brand Name |
Blackburn |
Dimensions
|
Size |
10 X 2-15/16 inches Tall |
|
Wire Size |
#2 to #6 ACSR , #1 STR AWG , #6 SOL |
