Alternate Catalog No. : TT 500-500

Catalog No. : TT500-500

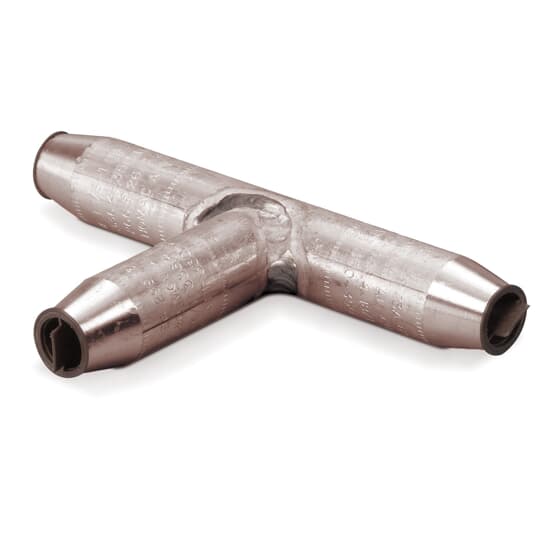

Description:  COPPER-TEE CONNECTOR FOR 500 MCM

UPC: 783786780099

Tin Plated Copper Tapered Tees, Main 500 kcmil CU, 500 Compact CU - Installing Dies TH, 87, 20, 1, 251, 12A - Length 2-19/32 inch, Tap 500 kcmil CU, 500 Compact CU - Installing Dies TH, 87, 20, 1, 251, 12A - Length 6-23/32 inch - Dimpled. Main is Silver Brazed to Tap.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Produced from Seamless Copper Tubing for High Conductivity.
  • Tin-Plated to Resist Corrosion.

Descriptors

Category

Wire or cable compression splice

Special Features

Produced from Seamless Copper Tubing for High Conductivity. Tin-Plated to Resist Corrosion. Tapered Ends Enable Use in High-Voltage Applications up to 69kV.

Application

For Use in High-Voltage Applications up to 69kV.

Specifications

Connection

Compression

Conductor Range

500 kcmil

Number Of Conductors

3

Material

Copper

Finish

Tin-Plated

Insulation

None

Classifications

Brand Name

Homac

Dimensions

Size

Main 6.718 inches Long, Main Diameter 1.060 inches, Tap 2.593 inches Long, Tap Diameter 1.060 inches.
