Catalog No. : TJC36400G

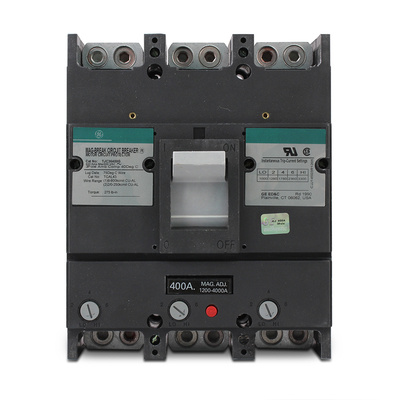

Description:  3 POLE 600V 400 AMP MAG BREAK C.B.

UPC: 783164135572

MagBreak Motor Circuit Protectors have an adjustable instantaneous trip system and are UL recognized components. 3 POLE 600V 400 AMP MAG BREAK C.B.
View More View Less

Descriptors

Category

Mag-Break® Motor Circuit Protector

Product Line

Thermal Magnetic

GO Schedule

EL

Specifications

Trip Style

Non-Interchangeable

Poles

3

Amperage

400 A

System Voltage

120 Vac
120/240 Vac
240 Vac
277 Vac
480 Vac
600 Vac

Frame Type

J600

120 Vac Interrupting Rating

42 KAIC

120/240 Vac Interrupting Rating

42 KAIC

240 Vac Interrupting Rating

42 KAIC

277 Vac Interrupting Rating

30 KAIC

480 Vac Interrupting Rating

30 KAIC

600 Vac Interrupting Rating

22 KAIC

Trip Function

Mag Only

Continuous Current Rated

Standard

Suitable for Reverse Feed

No

Lugs

TCAL47

Long Time

No

Instantaneous

Adjustable

Current Metering

No

Protective Relays

No

GSA Compliance

No

Classifications

UL File #

E11592
