Catalog No. : THQL1120AF2S

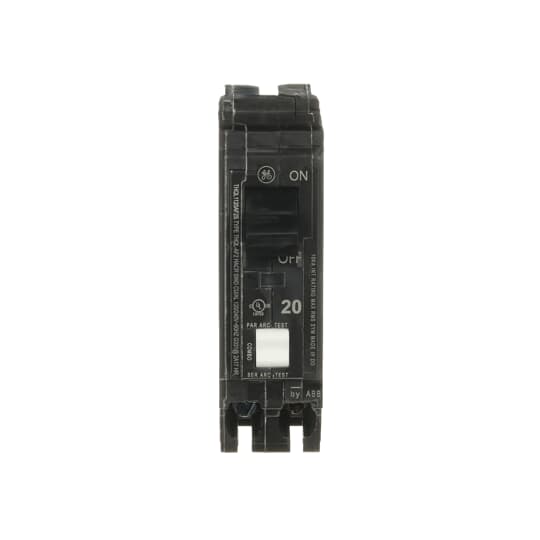

Description: THQL 1P 120V 20A AFCI SHORT WIRE
UPC: 783164618242
Arc fault breakers are designed to detect and prevent damages from arcing caused by damaged wire insulation or a frayed extension cord. All Q Line circuit breakers are one inch wide per pole, compact devices that feature: Quick-make / Quick-break mechanisms, common trip bars, and easy-to-spot trip indications to ensure safety and reliability. AF2 is a called a Combination breaker as it protects against arcs in both parallel and series and meets current NEC standards. The THQL1120AF2S breaker features arc-fault interrupting techonology, a short pigtail for easy wiring, 1 pole, an ampere rating of 20 A, an interrupting rating of 10kAIC, and a voltage rating of 120/240V.
View More
View Less
Descriptors
|
Category |
Arc Fault |
|
Product Line |
Q-Line (Plug-In) |
Specifications
|
Interrupting Capacity Rating |
10 kAIC |
|
Voltage |
120/240 V |
|
Neutral Connection |
Short Pig Tail |
|
Amperage |
20 A |
|
System Voltage |
120/240 Vac |
|
Poles |
1 |
|
Continuous Current Rated |
Standard |
|
120/240 Vac Interrupting Rating |
10 KAIC |
|
Long Time |
Fixed |
|
Protective Relays |
No |
Classifications
|
UL File # |
1699 |
