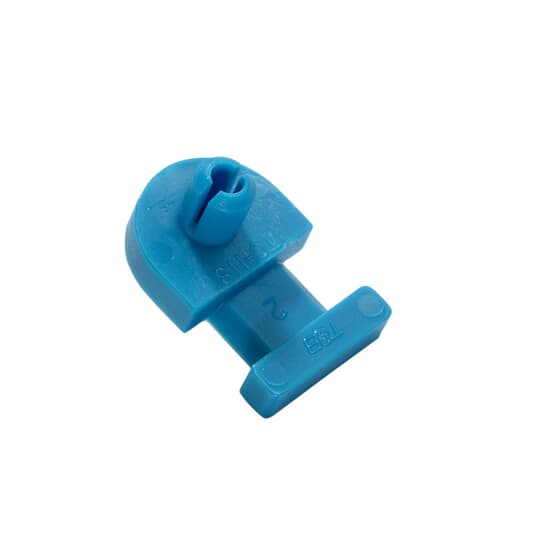

Representative Image

Catalog No. : TC118-TB

Description: RIVET-MOUNTED BASE .75X.5IN BLUE NY

UPC: 5414363058090

Rivet-Mounted Base, Blue Nylon 6.6 for Temperatures up to 85 Degrees Celsius, Length of 19.1mm (0.75 Inches), Width of 12.7mm (0.50 Inches), Height of 15mm (0.59 Inches), Rivet Mounted, #8 Clearance Hole up to 4.4 mm (0.173 Inches)

View More View Less

For more info visit: tnb.ca.abb.com/en/

Firmly locks into position when projecting pin is pushed into the mounting hole. Slip tie under base to attach bundle.

Descriptors

Category	Cable tie mounts
Special Features	Firmly locks into position when projecting pin is pushed into the mounting hole. Slip tie under base to attach bundle.

Specifications

Material	Nylon/Polyamide 6.6
Color	Blue
Mounting	Push Mount
Operating Temperature	-40 to +185 F

Classifications

Brand Name

Ty-Rap

Compliance and Certifications

RoHS	RoHS3 Compliant
REACH	REACH 247 Compliant
TSCA	TSCA Section 6(h) Compliant
POPs	POPs 28 Compliant

ETIM Classification

ETIM EC000449 Mounting base and -element for cable ties

Length	19.1 mm
Length	0.75 inch
Width	12.7 mm
Width	0.5 inch
Height	15 mm
Height	0.59 inch
Type of fastening	Other
Diameter mounting hole	4.4 mm
Material	Plastic
Material quality	Polyamide (PA)
Colour	Blue
