Catalog No. : SWC215F1304

Description:  FLEXIBLE BRAIDS, 12 INCHES

UPC: 75114331326

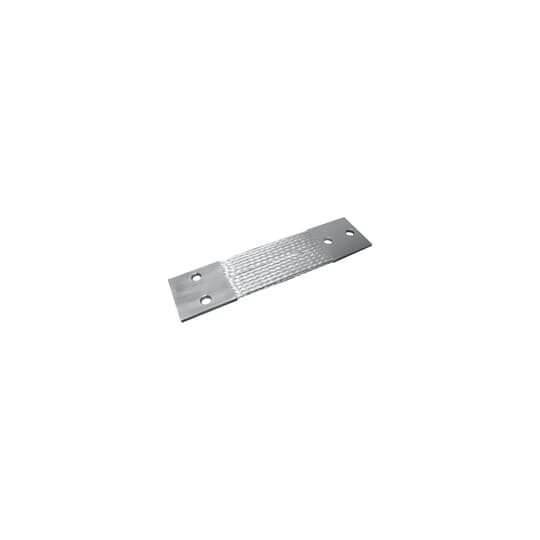

Tinned Copper, Standard Flexible Braid Connector, SWC Series, 2 Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center. 12 inch (304 mm) long, 3 inch (76.2 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3 inch x 3 inch. 30 AWG Individual Strand.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Standard Flexible Links for Medium-Duty Applications.
  • 30 AWG Individual Wire Gauge Size
  • 2 Hole NEMA Pads on Both Sides - One Side Transverse to Pad, the Other Side In-Line With Pad.

Descriptors

Category

Flexible braid

Special Features

Tin Plated for High Conductivity and Corrosion Resistance. 2 Hole NEMA Pads - one vertical and one horizontal

Application

Suitable for connecting Transformer Links or Switchgear.

Specifications

Conductor Material

Tin-Plated Copper

Conductor Category

Flexible

Shape Of Conductor

Flat

Classifications

Brand Name

Boreal

Standard

IEEE/ANSI C37.34
IEEE/ANSI C37.34

Dimensions

Cable Width

3 in , 76.2 mm

Cable Length

304 mm
ETIM EC000839 Braid wire

Conductor material

Copper, tinned

Conductor category

Class 5 = flexible

Shape of conductor

Flat

Cable width approx.

76.2 mm

Cable width approx.

3 inch

Cable height approx.

304 mm

Cable height approx.

12 inch
