Catalog No. : SWC215E3915

Description:  SWG XFORM LINK 2150A 2H 915MM

UPC: 75114297219

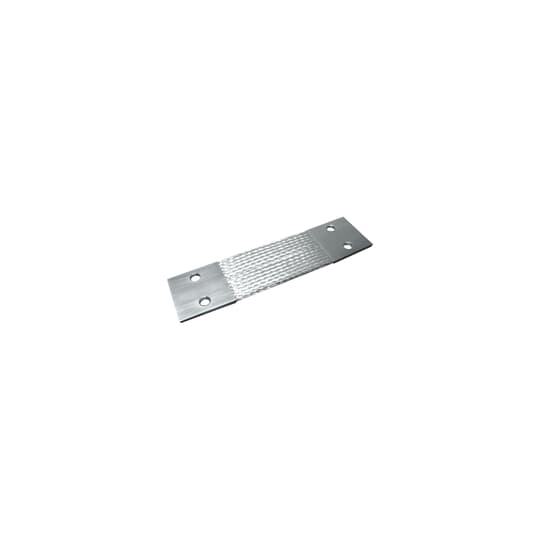

Tinned Copper, Standard Flexible Braid Connector, SWC Series, 2 Hole Pads with NEMA Standard 7/16 inch (11.1 mm) Holes and 1-1/2 inch (38.1 mm) Spacing Center to Center. 36 inch (915 mm) long, 3 inch (76.2 mm) wide, 3/8 inch (9.5 mm) thick. Pad 3 inch x 3 inch. 30 AWG Individual Strand. Holes Transverse to Braid.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Standard Flexible Links for Medium-Duty Applications.
  • 30 AWG Individual Wire Gauge Size
  • 2 Hole NEMA Pads on Both Sides - Transverse to Pad.

Descriptors

Category

Flexible braid

Special Features

Tin Plated for High Conductivity and Corrosion Resistance. 2 Hole NEMA Pads

Application

Suitable for connecting Transformer Links or Switchgear.

Specifications

Conductor Material

Tin-Plated Copper

Conductor Category

Flexible

Shape Of Conductor

Flat

Classifications

Brand Name

Boreal

Standard

IEEE/ANSI C37.34
IEEE/ANSI C37.34

Dimensions

Cable Width

3 in , 76.2 mm

Cable Length

915 mm
ETIM EC000839 Braid wire

Conductor material

Copper, tinned

Conductor category

Class 5 = flexible

Shape of conductor

Flat

Cable width approx.

76.2 mm

Cable width approx.

3 inch

Cable height approx.

915 mm
