Alternate Catalog No. : SAC 750 TN

Catalog No. : SAC750TN

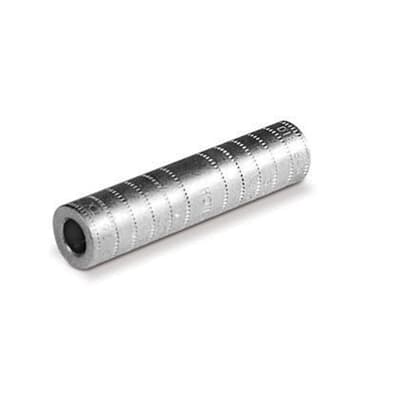

Description:  AL COMP SPLICE 750 TINPLATED

UPC: 783786747955

Tin-Plated Aluminum Straight Splices - Wire Range 700-750 kcmil AL-CU. Installing Dies 140H, 301, 342, 724, 1, 1/2. Length 7 inch. Oil Stop. Oxide Inhibitor. Yellow Caps.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Entire Conductor Range Installed by Six Common Dies to Reduce Die Inventory.
  • Made from Aluminum for High Strength and Conductivity.
  • Solid Center Stop Ensures Proper Cable Insertion.
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Connector Bores Coated with Oxide Inhibitor to Prevent Oxidation.
  • All Splices Marked with Conductor Sizes and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Descriptors

Category

Wire or cable compression splice

Special Features

Solid Center. Dual Rated. Oxide Inhibiting Compound. Marked with Conductor Sizes and Die References.

Application

Splices designed for general UnderGround Applications

Specifications

Connection

Compression

Conductor Range

700 to 750 kcmil

Number Of Conductors

2

Material

Aluminum

Finish

Tin-Plated

Insulation

None

Classifications

Brand Name

Homac

Standard

ANSI C119.4
ANSI C119.4

Dimensions

Size

7 inches long
