Catalog No. : RB14-250FP

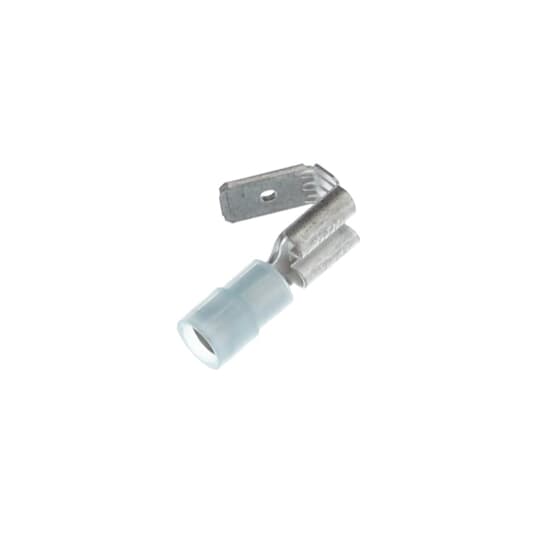

Description:  INS NYL PIGGY BCK 250 DISC No16-14

UPC: 786210169811

Nylon Insulated Piggy Back Disconnect, Length .87 Inches, Width .30, Piggy Back Depth .43 Inches, Maximum Insulation .163, Tab Size .250x.032, Wire Range #16-#14, Color Blue, Copper, Tin Plated, 100 Pack
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Designed for stacking applications.
  • Application Tools: WT112M
  • Alternate Package Qty: RB250P

Descriptors

Category

Wire terminal disconnect

Special Features

Designed for stacking applications.

Specifications

Material

Brass

Finish

Tin Plated

Color

Blue

Insulation

Nylon/Polyamide

Classifications

Brand Name

Sta-Kon

Standard

UL E66716
UL E66716

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 240 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000516 Round or flat plug/receptacle

Insulation

Partially isolated

Colour insulation

Blue

Material insulation

PA

Material

Copper

AWG-range

16-14

Documents/Support Tools

Sales Drawing

Click here
