n° de catalogue : RAS18-250AX

Description:  HEAT-SHR FEM-250 DISC, 22-18 LEN 1.

UPC: 786210070759

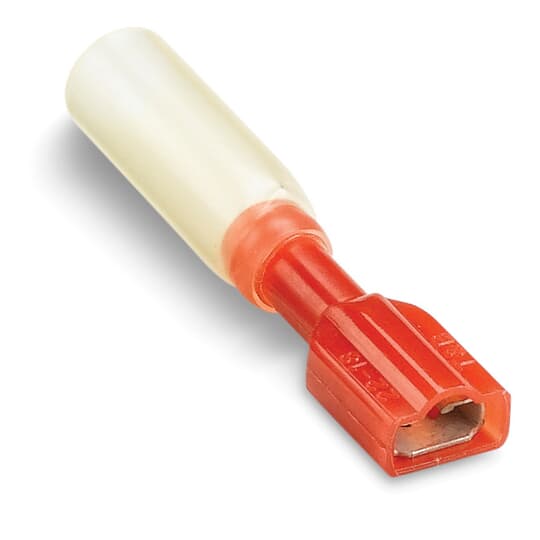

Heat Shrinkable Fully Insulated Female Disconnect Terminal, Length 1.82 Inches, Maximum Insulation .170, Tab Size .250x.032, Wire Range #22-#18 AWG, Color Red, Copper, Tin Plated
Afficher plus Afficher moins
Pour plus d’informations, visitez:  tnb.ca.abb.com/fr/
  • Unique construction of the female disconnect offers long-term dependability.
  • Brazed seam serrated barrel provides maximum tensile strength.
  • Application Tools: WT1255

Descriptors

Category

Wire terminal disconnect

Special Features

Unique construction of the female disconnect offers long-term dependability. Brazed seam serrated barrel provides maximum tensile strength.

Specifications

Material

Brass

Finish

Tin Plated

Color

Red

Classifications

Brand Name

Sta-Kon

Conformité et certifications

RoHS RoHS3 Compliant
REACH REACH 240 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000516 Round or flat plug/receptacle

Insulation

Fully isolated

Colour insulation

Red

Material insulation

PA

Material

Copper

AWG-range

22-18

Documents/outils d'aide

Dessin de vente

Cliquez ici
