Catalog No. : M15CLF100-66-WMBQ

Description:  25KV MOLDED CLF W-WMBQ

UPC: 75114396790

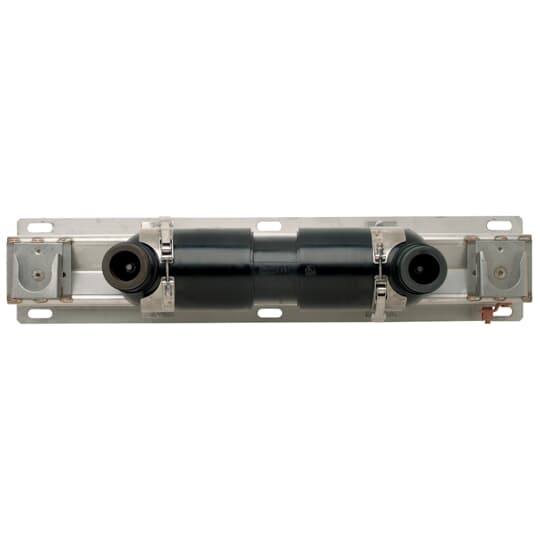

Encapsulated Molded Current-Limiting Fuses, Nominal Fuse Voltage Rating 8.3kV, Current Rating Amps 100, WMBQ option - Wall Mount Bracket with parking stands and Quick Release style hold down straps, Option 66 - 600 Amp bushings on both ends
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Medium voltage fuse

Special Features

EPDM Molded Rubber Deadfront Construction Insulates, Shields and Eliminates Exposed Live Parts. Lightweight Fuses are Fully Sealed and Submersible. Specially Designed Fuse Elements with Built-in Low and High Current Interrupting Capability Provide Full Range Fault Current Protection thru 50kA. Current Limiting Protection limits the System Available Fault Current and Dramatically reduces Stresses on Equipment. Internal Fuse Shield Prevents Corona and Deterioration of the Fuse Element.

Application

Suitable for Padmount, Subsurface or Vault Installations

Specifications

Amperage Rating

100 A

Voltage Rating

8.3 kV

Mounting

Clip

Material

EPDM Molded Rubber

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI C37.40, ANSI C37.41, ANSI C37.47, IEEE 386

Dimensions

Size

Overall Length 19-5/8 in (498mm) x Width 5-1/8 in (130mm) not counting brackets
