Catalog No. : LTL400E3457

Description:  L XFORM LK 6VH 9/16H 12.7X152.4X457

UPC: 783786777792

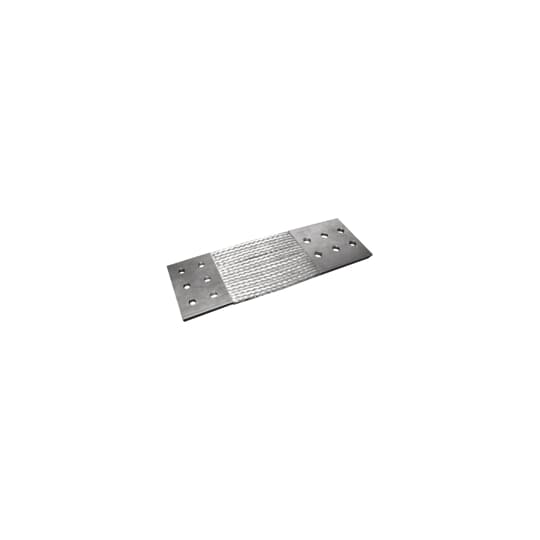

Tinned Copper, Standard Flexible Braid Connector, LTL Series - Large Transformer Links, 6-Hole Pads with NEMA Standard 9/16 inch (14.3 mm) Holes and 1-3/4 inch (44.4 mm) Spacing Center to Center, 1 Pad Vertical and other Pad Horizonal. 18 inch (457 mm) long, 6 inch (152.4 mm) wide, 1/2 inch (12.7 mm) thick. Pad A - 6 inch x 5-1/2 inch, Pad B 6 inch x 4 inch. 30 AWG Individual Strand.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Large Transformer Links.
  • 30 AWG Individual Wire Gauge Size
  • 6 Hole NEMA Pads on Both Sides - One Side In-Line with Pad, Other Side Transverse to Pad.

Descriptors

Category

Flexible braid

Special Features

6 Hole Pads

Application

Large Transformer Links

Specifications

Conductor Material

Tin-Plated Copper

Conductor Category

Flexible

Shape Of Conductor

Flat

Classifications

Brand Name

Boreal

Standard

IEEE / ANSI C37, 34
IEEE / ANSI C37, 34

Dimensions

Cable Width

6 in , 152.4 mm

Cable Length

457 mm
ETIM EC000839 Braid wire

Conductor material

Copper, tinned

Conductor category

Class 5 = flexible

Shape of conductor

Flat

Cable width approx.

152.4 mm

Cable width approx.

6 inch

Cable height approx.

457 mm
