Catalog No. : LTL400A1457

Description:  L XFORM LNK 4 11/16H 12.7X152.4X457

UPC: 783786518685

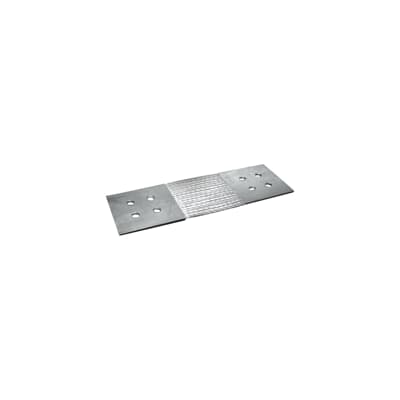

Tinned Copper, Standard Flexible Braid Connector, LTL Series - Large Transformer Links, 4-Hole Pads with NEMA Standard 11/16 inch (18 mm) Holes and 2 inch (50.8 mm) Spacing Center to Center, 18 inch (457 mm) long, 6-3/8 inch (162 mm) wide, 1/2 inch (12.7 mm) thick. Pad 6-3/8 inch x 6 inch. 30 AWG Individual Strand.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Large Transformer Links.
  • 30 AWG Individual Wire Gauge Size
  • 4 Hole NEMA Pads on Both Sides.

Descriptors

Category

Flexible braid

Special Features

6 Hole Pads

Application

Large Transformer Links

Specifications

Conductor Material

Tin-Plated Copper

Conductor Category

Flexible

Shape Of Conductor

Flat

Classifications

Brand Name

Boreal

Standard

IEEE / ANSI C37, 34
IEEE / ANSI C37, 34

Dimensions

Cable Width

6 in , 152.4 mm

Cable Length

457 mm
ETIM EC000839 Braid wire

Conductor material

Copper, tinned

Conductor category

Class 5 = flexible

Shape of conductor

Flat

Cable width approx.

162 mm

Cable width approx.

6.375 inch

Cable height approx.

457 mm
