Catalog No. : LS-7.9-360-C

Description:  316 S/S COATED TIE 7.9X360 MM

UPC: 786209876836

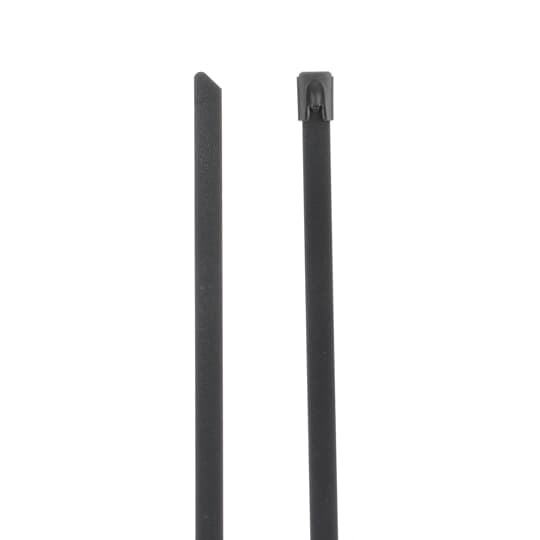

Ball-Lock 316 Stainless Steel Cable Tie, Black Polyester Coated, Temperatures up to 165 Degrees Celsius (329 F) for Cold Conditions and Offshore Applications, UL/EN/CSA62275 Type 21 Rated, Length of 360mm (14.2 Inches), Width of 7.9mm (0.31 Inch), Thickness of 0.3mm (0.01 Inch), Tensile Strength Rating of 1112 Newtons (250 Pounds)
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Marine-grade 316 stainless steel
  • Halogen-free non-toxic black polyester used forcoated ties
  • UV resistant coating
  • Application Tools: DAS-250

Descriptors

Category

Stainless Steel Ties

Specifications

Material

316 Stainless Steel

Color

Black

Lock Mechanism

Ball-Lock

Tensile Strength

250 pounds , 1112 newtons

Classifications

Brand Name

Ty-Rap

Standard

UL E49405

Dimensions

Width

0.31 in , 7.9 mm

Length

14.2 in , 360 mm

Thickness

0.01 in , 0.3 mm

Bundle Diameter

Max 3.9 in , Max 100 mm

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant

Certification/Standard

CLASS File Number Class CCN Certificate Number Library Number
UL E49405 N/A N/A N/A N/A
ETIM EC000046 Cable tie

Band width

7.9 mm

Length belt/tape/tie

360 mm

Length belt/tape/tie

14.2 inch

Tie thickness

0.3 mm

Tie thickness

0.01 inch

Max. bundle diameter

100 mm

Min. holding force

1112 N

Operation temperature

-60-+165 °C

Operation temperature

-76-+329 °F

Model

Internal toothing

Band closure

Ball latch

Material

Metal

Material quality

Stainless steel 316 (V4A)

Surface protection

Plastic-coated

Halogen free

Y

Colour

Black

Transparent

N

Reflective (fluorescent)

N

Text strip

None

Solvable fastener

N

MIL approval

N

UL approval

Y
