Catalog No. : L-5-30MH-0-C

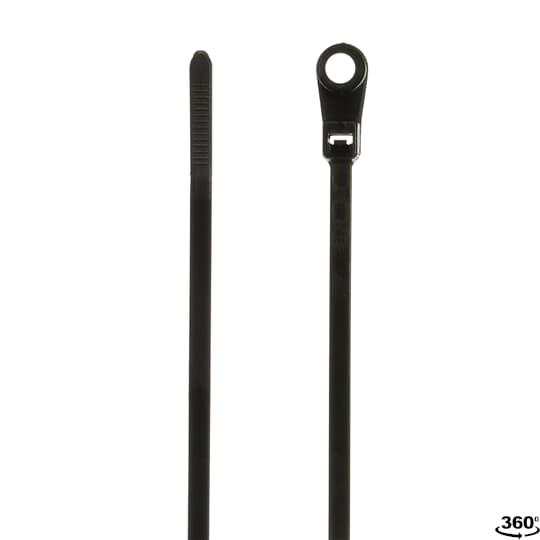

Description:  CABLE TIE 30LB 5IN BLK NYL MTG HOLE

UPC: 728494915005

Intermediate, Integrated Mounting Hole Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 137.76mm (5.42 Inches), Width of 3.63mm (0.143 Inches), Thickness of 1.21mm (0.048 Inches), Tensile Strength Rating of 133 Newtons (30 Pounds), #8 Screw for Mounting
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Application Tools: ERG50, ERG120, QC-100, L-200, L-400-C

Descriptors

Category

Cable ties

Specifications

Material

Nylon/Polyamide 6.6 Weather Resistant

Color

Black

Lock Mechanism

Plastic Pawl

Tensile Strength

30 pounds , 133 newtons

Classifications

Brand Name

Catamount

Standard

UL E49405
UL E49405

Dimensions

Width

0.143 in , 3.63 mm

Length

5.42 in , 137.76 mm

Thickness

0.05 In , 1.31 mm

Bundle Diameter

Max 1.25 in , Max 31.75 mm

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000046 Cable tie

Band width

3.63 mm

Length belt/tape/tie

150.36 mm

Length belt/tape/tie

5.92 inch

Tie thickness

1.21 mm

Tie thickness

0.05 inch

Max. bundle diameter

31.75 mm

Min. holding force

133 N

Operation temperature

-40-+85 °C

Operation temperature

-40-+185 °F

Model

Internal toothing

Band closure

Plastic lip/-cam

Material

Plastic

Material quality

Polyamide (PA)

Surface protection

Untreated

Halogen free

Y

Colour

Black

Transparent

N

Reflective (fluorescent)

N

Text strip

None

Solvable fastener

N

Type of fastening

Screw hole

MIL approval

N

UL approval

Y
