Catalog No. : L-48-175-9-L

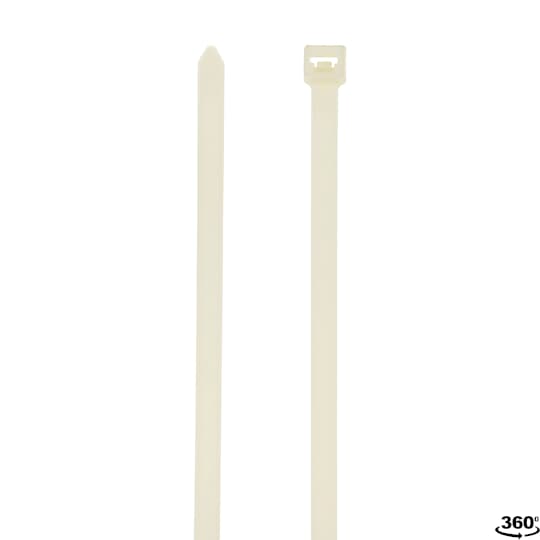

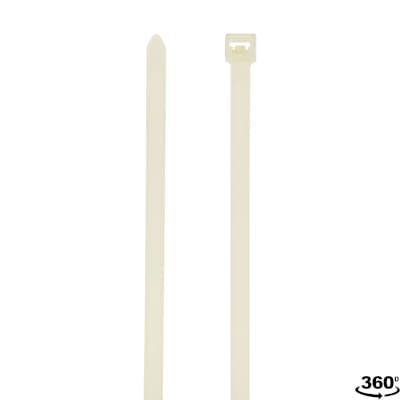

Description:  CABLE TIE 175LB 48 IN NAT NYL 1-PC

UPC: 728494913902

Extra Heavy Duty Cable Tie, Natural Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, UL/EN/CSA62275 Type 2/21S Rated for AH-2 Plenum and as a Flexible Cable and Conduit Support, Length of 1208.17mm (47.566 Inches), Width of 8.76mm (0.345 Inches), Thickness of 2.15mm (0.085 Inches), Tensile Strength Rating of 778 Newtons (175 Pounds)
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Application Tools: L-300C

Descriptors

Category

Cable ties

Specifications

Material

Nylon/Polyamide 6.6 Weather Resistant

Color

Natural

Lock Mechanism

Plastic Pawl

Tensile Strength

175 pounds , 778 newtons

Classifications

Brand Name

Catamount

Standard

UL E49405
UL E49405

Dimensions

Width

0.345 in , 8.76 mm

Length

47.566 in , 1208.17 mm

Thickness

0.085 in , 2.15 mm

Bundle Diameter

Max 15 in , Max 381 mm

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC000046 Cable tie

Band width

8.76 mm

Length belt/tape/tie

1208.17 mm

Length belt/tape/tie

47.56 inch

Tie thickness

2.15 mm

Tie thickness

0.085 inch

Min. holding force

778 N

Model

Internal toothing

Band closure

Plastic lip/-cam

Material

Plastic

Material quality

Polyamide (PA)

Surface protection

Untreated

Halogen free

Y

Colour

Natural colour

Transparent

N

Reflective (fluorescent)

N

Text strip

None

Solvable fastener

N

MIL approval

N
