Catalog No. : L-14-120MH-0-C

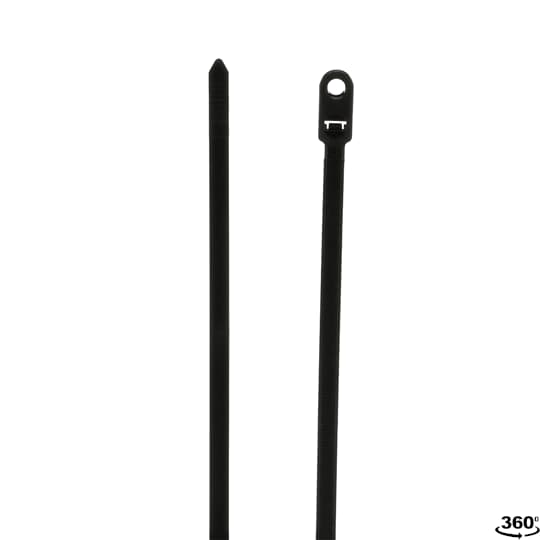

Description:  CABLE TIE 120LB 15IN UV BLK NYL HVY

UPC: 728494911403

Integrated Mounting Hole Heavy-Duty Cable Tie, Black Polyamide (Nylon 6.6) for Temperatures up to 85 Degrees Celsius (185 F) for Indoor Applications, Length of 382mm (15 Inches), Width of 7.6mm (0.3 Inch), Thickness of 1.8mm (0.07 Inch), Tensile Strength Rating of 540 Newtons (120 Pounds), #10 Screw for Mounting, 100 Pack
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Application Tools: ERG50, ERG120, QC-100, L-200, L-400-C

Descriptors

Category

Cable ties

Specifications

Material

Nylon/Polyamide 6.6 Weather Resistant

Color

Black

Lock Mechanism

Plastic Pawl

Tensile Strength

120 pounds , 540 newtons

Classifications

Brand Name

Catamount

Standard

UL E49405

Dimensions

Width

0.3 in , 7.6 mm

Length

15 in , 382 mm

Thickness

0.07 In , 1.8 mm

Bundle Diameter

0.187 to 4 in , 4.76 to 101.6 mm

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 240 Compliant
TSCA TSCA Section 6(h) Compliant

Certification/Standard

CLASS File Number Class CCN Certificate Number Library Number
UL E49405 N/A N/A N/A N/A
ETIM EC000046 Cable tie

Band width

7.6 mm

Length belt/tape/tie

382 mm

Length belt/tape/tie

15 inch

Tie thickness

1.8 mm

Tie thickness

0.07 inch

Max. bundle diameter

101.6 mm

Min. holding force

540 N

Operation temperature

-40-+85 °C

Operation temperature

-40-+185 °F

Model

Internal toothing

Band closure

Plastic lip/-cam

Material

Plastic

Material quality

Polyamide (PA)

Surface protection

Untreated

Halogen free

Y

Colour

Black

Transparent

N

Reflective (fluorescent)

N

Text strip

None

Solvable fastener

N

Type of fastening

Screw hole

MIL approval

N

UL approval

Y

Inflammability class of insulation material acc. with UL94

V2
