Catalog No. : KL698-1

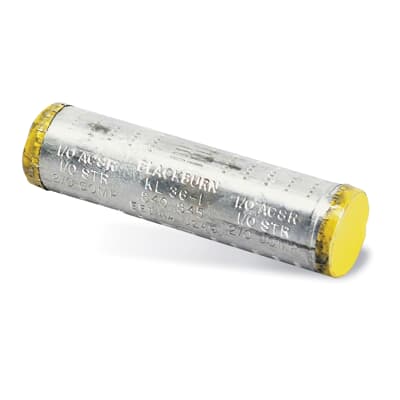

Description: COMP SERV SLEEVE, CONTAX, 4/0
UPC: 783786128433
- For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors
- Pass the Requirements for AMSI C119.4
- Splices Large Conductors Required for Commercial Service, Use as Low Cost Reducing Sleeve
- All Sizes Can be Installed with Popular Mechanical and Hydraulic Tools
- Center Stop Assures Proper Conductor Positioning
- Quick Identification with Color-Coded Foil Caps
Descriptors
|
Category |
Wire or cable compression splice |
|
Special Features |
Splices large conductors required for commercial service, use as low cost reducing sleeve. All sizes can be installed with popular mechanical and hydraulic tools. Center stop assures proper conductor positioning. Quick identifications with color-coded foil caps. |
|
Application |
For Combinations of Aluminum-to-Aluminum and Aluminum-to-Copper Conductors |
Specifications
|
Connection |
Compression |
|
Conductor Range |
Main: 4/0 STR , 4/0 COMPT Tap: 4/0 STR , 4/0 COMPT |
|
Number Of Conductors |
2 |
|
Material |
Aluminum |
|
Insulation |
None |
|
Mounting |
None |
|
Environmental Conditions |
All Seasons / Conditions |
Classifications
|
Brand Name |
Blackburn |
|
Standard |
Passes the requirements of ANSI C119.4 |
Dimensions
|
Size |
3-1/2 Inch |
