K656LRTPLM0270DRGS | Electrical connector assembly | Elastimold | Medium Voltage Utility Solutions | Electrical Distribution | Ecatalog

View Larger

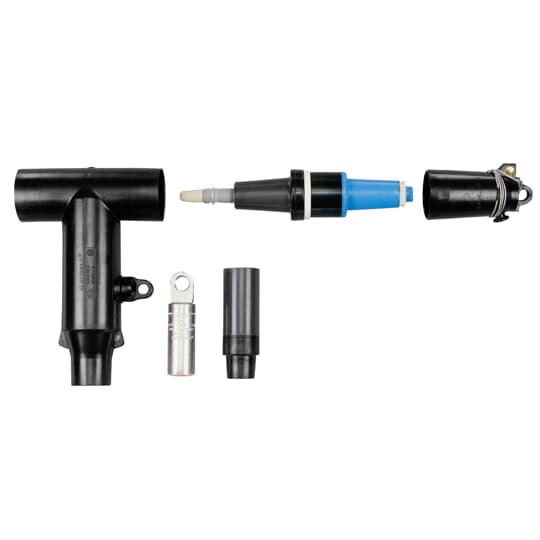

Representative Image

Alternate Catalog No. : K656LRTP-LM0270DRG-S

Catalog No. : K656LRTPLM0270DRGS

Description: 15-25KV STICK OP KIT 600A

UPC: 75114176750

600 Amp, 25kV, Deadbreak, Stick-Op Connector Kit with Test Point, Cable Insulation Diameter 1.280 inch to 1.430 inch. Aluminum Compression Lug. Conductor Size AWG or kcmil, Compressed Stranded 4/0 /Compacted Solid 250 /mmSquared Compact 125. With Insulated Cap. Cold-Shrinkable Jacket Seal Included.

View More View Less

For more info visit: tnb.ca.abb.com/en/

Fully rated 15/25kV, 600 Amp Deadbreak Elbow
Fully shielded, fully submersible molded rubber housing
100 percent peroxide-cured construction includes insulation and conductive EPDM materials
Can be easily connected or disconnected using standard safety hand tools and equipment in a de-energized conditions
Surge arrestors, and fault current indicators can be installed, non-corrosive capacitive test point

Descriptors

Category	Electrical connector assembly
Special Features	Reducing Tap Plug 600 to 200 Amps. Test Point. Provides an External Visible Break by Hotstick Removal of the Elbow.
Application	Connect 600 Amp interface to 200 Amp Loadbreak Tap

Specifications

Conductor Range	4/0 STR/COMPR AWG , 250 kcmil
Material	Housing - EPDM Rubber
Color	Black
Enclosure	Yes, EPDM Rubber
Voltage Rating	15 kV
Amperage Rating	600 to 200 A
Insulation	Yes, EPDM Rubber
Temperature Rating	-40 to +65 C
Environmental Conditions	All Weather Conditions
