Catalog No. : K655YSR-K0300

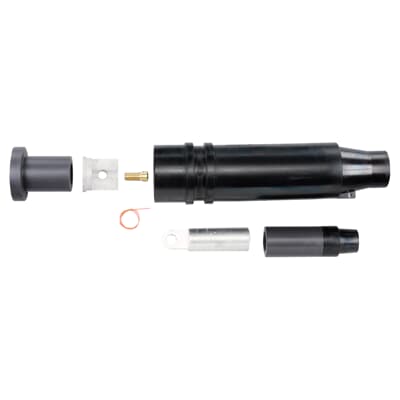

Description:  STR RECEPTACLE 600A DB,15/25KV

UPC: 783786197682

600 Amp Separable Cable Joints, Straight Receptacle, 15/25KV, Dead Break, Cable Insulation Diameter 1.090 inch to 1.310 inch. Aluminum Compression Lug. Conductor Size kcmil Compressed Stranded 350 or Solid 400 or mmSquared 185.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical connector assembly

Special Features

Fully Shielded, Fully Submersible, Can be easily Connected or Disconnected in a De-Energized State.

Application

These Connectors allow a straight cable connection on Switchgear or Electrical Apparatus equipped with 600 Amp Bushings.

Specifications

Connection

Compression

Conductor Range

300 kcmil , 350 kcmil

Material

Housing - EPDM Rubber

Color

Black

Voltage Rating

15 to 25 kV

Amperage Rating

600 A

Insulation

Yes, EPDM Rubber

Temperature Rating

-40 to +65 C

Environmental Conditions

All Weather Conditions

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI/IEEE Standard 386

Dimensions

Size

Length 16.98 inch x 4.19 inch Diameter
