Catalog No. : K655LRTP-K0300

Description:  STICK-OP, ELBOW KIT

UPC: 783786863310

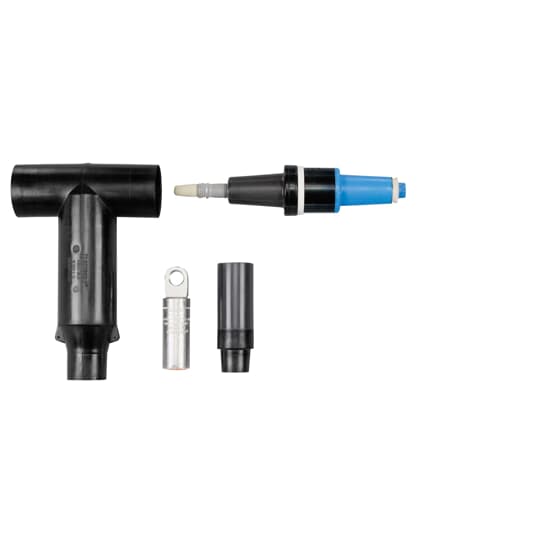

600 Amp, 25kV, Stick-Op Connector Kit. Aluminum Compression Lug. Cable Insulation Diameter 1.090 inch to 1.310 inch. Conductor Size AWG or kcmil, Compressed Stranded 350 /Compacted Solid 400 /mmSquared Compact 185.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical connector assembly

Special Features

Reducing Tap Plug 600 to 200 Amps. Provides an External Visible Break by Hotstick Removal of the Elbow.

Application

Connect 600 Amp interface to 200 Amp Loadbreak Tap

Specifications

Conductor Range

350 kcmil , 400 kcmil

Material

Housing - EPDM Rubber

Color

Black

Enclosure

Yes, EPDM Rubber

Voltage Rating

25 kV

Amperage Rating

600 to 200 A

Insulation

Yes, EPDM Rubber

Temperature Rating

-40 to +65 C

Environmental Conditions

All Weather Conditions

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI/IEEE Standard 386
ANSI/IEEE Standard 386
