Alternate Catalog No. : K655CETPH0270DRGSG3

Catalog No. : K655CETPH0270DRGSG

Description:  25KV COMBO T 600A W-SEALING KIT

UPC: 75114340649

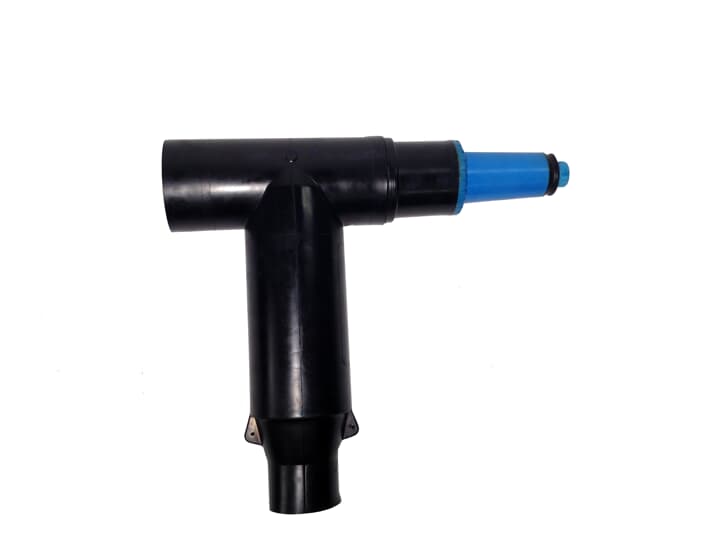

35kV, 600 Series Deadbreak Connector Combo Elbow with Integral 200 Amp Loadbreak Tap Plug, without Test Point, with Seal. Cable Insulation Diameter 0.850 - 1.050 inches (21.59-26.67mm). Aluminum Compression Lug. Conductor Size 270 - 4/0 Stranded/Compressed or 250 Solid/Compact. Kit Includes Elbow Connector Housing, Stud, Lug, Tube of Lubricant, Cable Adapter, Crimp Chart and Installation Instructions.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical connector assembly

Special Features

Reducing Tap Plug with Stud, Cable Adapter, Lug and Insulated Cap

Application

600 Amps, 25kV Connector

Specifications

Conductor Range

4/0 STR/COMPR AWG , 250 kcmil

Material

Housing - EPDM Rubber

Color

Black

Voltage Rating

25 kV

Amperage Rating

600 A

Insulation

Yes, EPDM Rubber

Temperature Rating

-40 to +65 C

Environmental Conditions

All Weather Conditions

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI/IEEE Standard 386
ANSI/IEEE Standard 386

Dimensions

Size

13.31 inches width, 10.88 inch bottom edge to center of bushing.
