K151-SOP | Cable accessories | Elastimold | Medium Voltage Utility Solutions | Electrical Distribution | Ecatalog

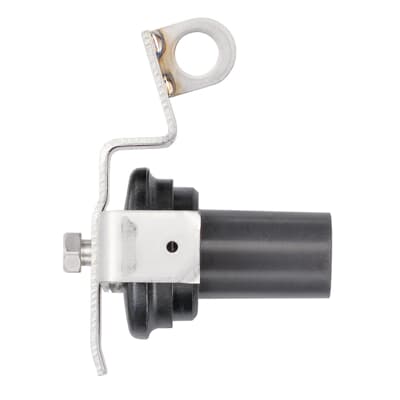

View Larger

Representative Image

Description: 15/25KV DEADBRK PRKBUSH STANDOFF

UPC: 783786650088

15/25kV 200 Amp, Deadbreak Insulated Parking Bushing, stand off plug, Bails are required, but not included, order separately.

View More View Less

For more info visit: tnb.ca.abb.com/en/

Category	Cable accessories
Special Features	15/25kV, 200 Amp Deadbreak Rated. Peroxide-cured insulation and jacket. Fully shielded, fully submersible. Mounts in Deadbreak parking stand. Provides Dead-End for circuit.
Application	Fully shielded, fully submersible parking bushing designed for de-energized operation. It is suitable for use on 15kV and 25kV class systems.

Material	EPDM Rubber
Temperature Rating	-40 to +65 C

Brand Name	ELASTIMOLD
Standard	ANSI/IEEE 386

Size	5.08 inch (128.9 mm) Length, 3.42 inch (86.8 mm) wide

RoHS	Out of scope of RoHS
TSCA	TSCA Section 6(h) Compliant
