Catalog No. : K1502-A1

Description:  INSERT FEED-THRU 200A DB 15/25K

UPC: 783786625642

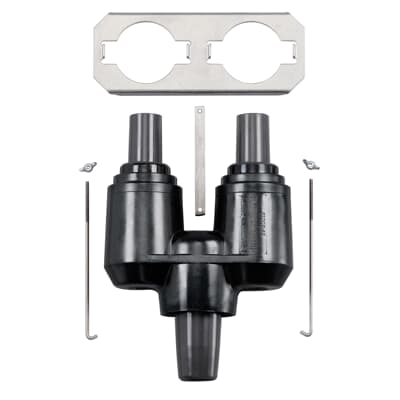

15/25kV 200 Amp, Deadbreak Feed-Thru Insert, Bails are required, but not included, order separately. Fully rotatable for 360 degree positioning. Includes bail assembly to secure feed-thru insert to bushing well. Elbows bail assemblies are required but not included with the feed-thru insert.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Cable accessories

Special Features

15/25kV, 200 Amp Deadbreak Rated. Fits standard Elastimold bushing well. Peroxide-cured insulation and jacket. Provision for ground wire connection. Provides extra deadbreak tap for well type connection. Rotatable for 360 degree mounting.

Application

Fully-shielded, fully submersible separable insulated connector designed for de-energized operation. The feed-thru insert fits a standard ANSI bushing well interface. Designed for use as an apparatus bushing interface.

Specifications

Material

EPDM Rubber

Temperature Rating

-40 to +65 C

Classifications

Brand Name

ELASTIMOLD

Standard

ANSI/IEEE 386

Dimensions

Size

9.82 inch (249.4 mm) long, 3.22 inch (81.8 mm) wide, 8.00 inch (203.2 mm) wide

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant

Sustainability

Environmental product declaration

EPD Elastimold Underground Cable Accessories - Cable Adaptors

EPD Elastimold Elbows

EPD Elastimold Elbow, Busing Extender and Vault Stretcher

EPD Elastimold Bushing

EPD Elastimold Junctions
