Alternate Catalog No. : IPC 402-8

Catalog No. : IPC402-8

Description:  INSULATION PIERCING CONNECTOR

UPC: 783786379002

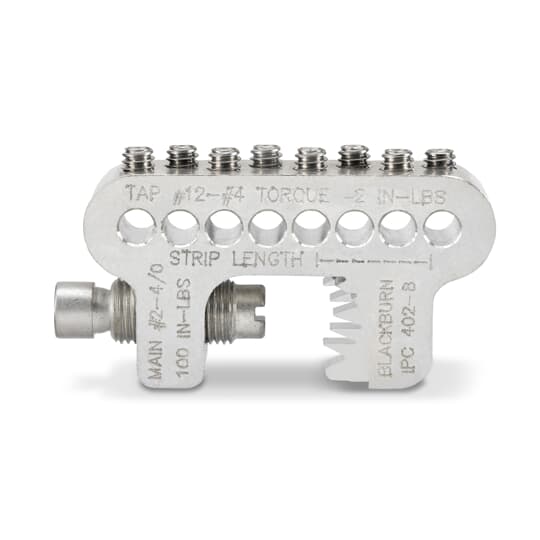

Tin-Plated Aluminum, Insulation Piercing Connector, Main #2-4/0, Main Torque 100 Inch/Pounds, Tap #12-#4. Tap Torque 42 Inch/Pounds . 2.958 inch long X .750 inch wide X 1.562 inch Depth. Machined. Has 1/2-20 UNF-2B Thru Threaded hole, with (8) Taps and (1) Main Socket Head Cup Point Set Screws. Under 1000 Volts. Insulation Piercing - Has Teeth.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Wire connectors

Specifications

Connection

Mechanical

Material

Aluminum

Finish

Tin Plated

Insulation

None

Classifications

Brand Name

Homac

Dimensions

Size

2.958 inch long X .750 inch wide X 1.562 inch Depth

Wire Size

Main #2 to 4/0 AWG , Tap #12 to #4 AWG

Documents/Support Tools

Instruction Sheet

Click here
