Catalog No. : EACT-0750

Description:  15-35KV 600-900A SHEARBOLT CONN0750

UPC: 75114343572

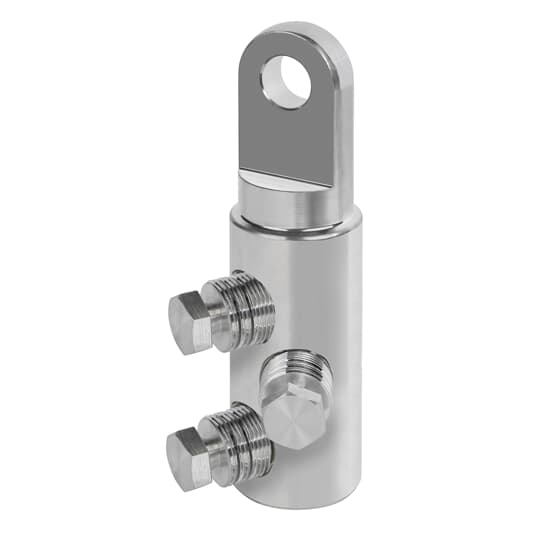

15/35kV, 600-900 Amps, Tin-Plated Aluminum ShearBolt Connector for 350 to 750 kcmil. Barrel Body Diameter 1.65 Inch (42mm), Length 5.83 inch (148mm), 1-Hole Pad Width 1.42 inch (36mm), .5 inch Thick, Hole Diameter 0.689 inch (17.5mm). Includes Three Round Bottom M22 x 1.5 Screws with 3/4 inch Hex Head.
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Mechanical connector lug and cap

Special Features

Installs using a standard Wrench and Socket. Special design with grooves for an optimal contact. Designed and tested for use on both aluminum and copper conductors.

Application

IEEE 386 Separable Connectors. 600/900 Amp Elbow Connectors, Vault Stretcher and Straight receptacles form 15, 25 and 35 kV. Solid and Stranded Aluminum and Copper Conductors.

Specifications

Conductor Range

350 to 750 kcmil

Color

Tin

Classifications

Brand Name

ELASTIMOLD

Standard

IEEE 386 Separable Connector

Dimensions

Length

5.83 in , 148 mm

Width

1.65 in , 42 mm

Compliance and Certifications

TSCA TSCA Section 6(h) Compliant

Documents/Support Tools

Marketing Brochure

Click here
