Catalog No. : E976RFB

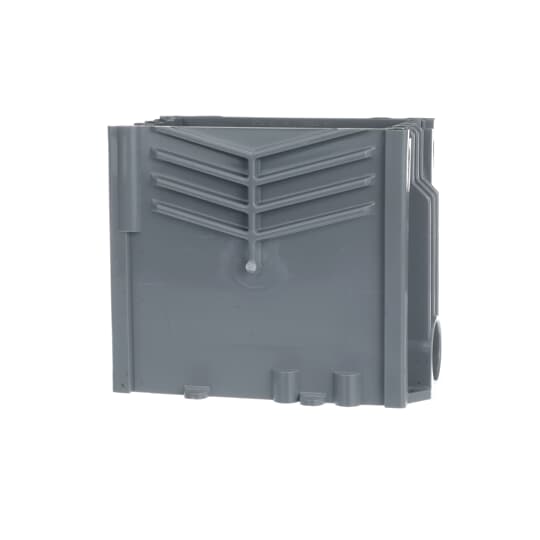

Description: RECT FLOOR BOX BASE ASSEMBLY
UPC: 34481126560
- Three way power, data, and communications plus easy double or triple ganging.
- One consistent box depth simplifies ordering time and reduces inventory.
- Saves time and money on installations with simple saw cut to floor level.
- Convenient cubic inch capacity markings on inside allow for easy inspection.
- Accepts 1/2 Inch, 3/4 Inch and 1 Inch conduit, tubing or raceway.
- Rectangular sides are drillable.
- UL scrub water tested, approved for all types of finish flooring.
- Concrete tight
Descriptors
|
Category |
Floor boxes |
|
Special Features |
Three way power, data, and communications plus easy double or triple ganging. |
|
Application |
Suitable for any on grade/below grade application, concrete or wood sub-floor construction approved. |
Specifications
|
Material |
Non-metallic |
|
Cubic Capacity |
97.4 cu in |
|
Knockouts |
0 |
Classifications
|
Brand Name |
Steel City |
|
Sub Brand |
Carlon |
|
Standard |
UL E11461 |
|
Cover model |
Rectangular |
|
Suitable for wet cleaning |
N |
|
Suitable for hollow floor |
Y |
|
Material |
Other |
|
With opening carpeting |
N |
|
Min. built-in depth |
98.425 mm |
|
Length external dimension |
139.7 mm |
|
Width outside dimension |
82.55 mm |
