Catalog No. : D220LSIT2R
Description: PBII POWER+ 2000A
UPC: 783164190960

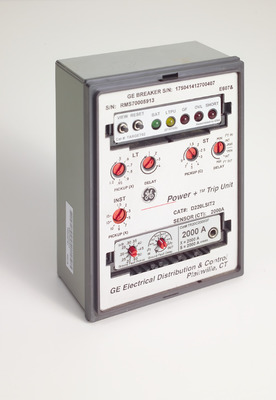

Power+ trip units provide a complete range of standard and optional overcurrent and ground fault protective functions. Power+ trip units use GE's proven technique of measuring true rms currents of both sinusoidal and harmonically distorted waveforms. True rms sensing avoids potential underprotection or overprotection problems associated with peak-sensing tripping systems. The Power+ Trip unit system can be used with optional trip target modules which indicate event types and monitor the health of the trip unit. This trip unit is for use only with new circuit breakers. For replacement trip units, add an "R" to the end of the catalog number.
View More
View Less
For more info visit:
https://library.abb.com/
Descriptors
|
Category |
Accessories |
|
GO Schedule |
K0 |
Specifications
|
Long Time |
Adjustable |
|
Short Time |
Yes |
|
Instantaneous |
Adjustable |
|
Ground Fault |
No |
|
Zone Selective Interlock |
No |
|
Current Metering |
Yes |
|
Communications |
Yes |
|
Protective Relays |
No |
|
GSA Compliance |
No |
|
Stock Status |
A |
Classifications
|
UL File # |
E11592 |
|
CSA File# |
LR40350 |
Additional Documentation: Visit our Publication Library to find technical documentation, time current curves, CSI Specifications and promotional literature.
