Catalog No. : CTG250
Description: GROUND CLAMP NO2-250
UPC: 783786126583

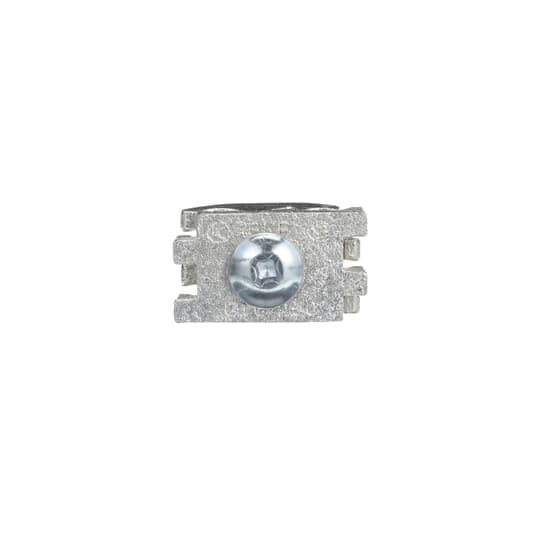

GROUND CLAMP #2 Sol -250 kcmil, 3/8 Inch Bolt, Height 1.95 Inches, Width 2.0 Inches, Depth 1.13 Inches
View More
View Less
For more info visit:
tnb.ca.abb.com/en/
- Ribbed neck on the bolt prevents rotation during tightening if .440 inch diameter hole is used.
- For use with aluminum or copper conductors. May be used in aluminum or galvanized-steel cable tray.
Descriptors
|
Category |
Grounding devices or assemblies |
|
Special Features |
Ribbed neck on the bolt prevents rotation during tightening if .440 inch diameter hole is used. |
Specifications
|
Conductor Material |
Aluminum |
|
Insulation |
No |
Classifications
|
Brand Name |
Blackburn / EZGROUND |
|
Standard |
UL E3060 |
ETIM Classification
ETIM
EC000511 Tube earthing clamp for lightning protection
|
Material |
Aluminium |
Documents/Support Tools
|
Sales Drawing |
