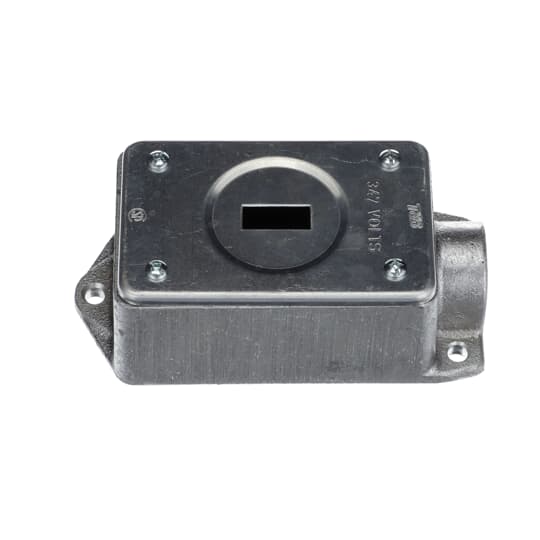

Representative Image

Catalog No. : CIFS-1G-3/4-HV

Description: FS HV BOX - SHALLOW - 1 GANG - 3/4

UPC: 622538062703

Made or assembled in Canada.

Single Gang FS Box, Cubic Inches 14.0, Length 4-5/16 Inches, Width 2-13/16 Inches, Depth 1-7/8 Inches, Hub Size 3/4 Inch, Aluminum, 3 Lugs, with 347 Volt Cover

View More View Less

For more info visit: tnb.ca.abb.com/en/

Made or assembled in Canada.

Descriptors

Specifications

Material	Cast Aluminum
Cubic Capacity	14 cu in
Knockouts	Yes

Classifications

Brand Name	Red Dot
Sub Brand	IBERVILLE
Standard	5043 5043

ETIM Classification

ETIM EC002656 Cover for box/housing for built-in mounting in the wall/ceiling

Length	109.5248 mm
Width	71.4248 mm
Depth	47.625 mm
Shape	Rectangular
Type of fastening	Cover for screw mounting
Model	Mounting cover
Material	Other
Colour	Other
With screws	N
