Catalog No. : CI71

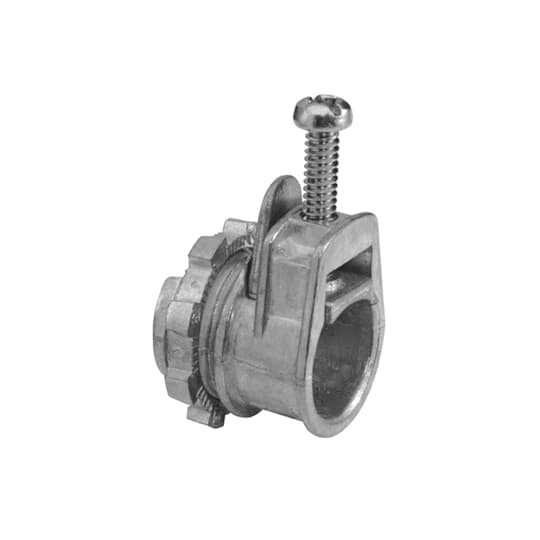

Description:  ONE SCR FTG 1/2IN ZINC ALLOY

UPC: 622538702715

Made or assembled in Canada.

Fitting, One Screw, Trade Size 1/2 Inch, Clamping Range 0.33 Inch - 0.95 Inch, Zinc Alloy, Suggested Application NMD90 8/2-4/2, 12/3-4/3 and AC90 14/2-8/2, 14/3-8/3, 14/4-8/4, Pack of 200
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Made or assembled in Canada.

Descriptors

Category

Electrical fittings

Application

NMD90 (loomex) 10/2, 6/2, 12/3, 6/3 - AC90 (BX) 14/2,8/2,14/3, 8/3, 14/4, 8/4 - ACG90 (BX) 14/2, 10/2, 14/3, 10/3, 14/4, 10/4, FMC 5/16, 3/8 in., 1/2 in. trade size

Specifications

Material

Zinc alloy

Classifications

Brand Name

Iberville

Standard

3313

Dimensions

Size

1/2 Inch

Certification/Standard

CLASS File Number Class CCN Certificate Number Library Number
CSA 3313 441202 N/A 2472776_2012-05-24 N/A
CSA AP58382 908501 N/A N/A N/A

Sustainability

Environmental product declaration

EPD Flex-plus ENT

EPD Carlon Riser-Gard PVC Conduit US

EPD Carlon Plenum-Gard Conduit US

EPD Carlon SECAP Fittings US

EPD Carlon Conduit Bodies and Fittings US

ETIM EC001180 Screw connection for protective metallic hose

Nominal size in inch

1/2 inch

Model

Straight

Revolving thread

N

Construction type

External thread

Connection type screw connection to housing

Thread

One-piece

Y

Material housing

Zinc die-cast

Surface protection

Untreated

Approved in combination with protective conduit DIN EN 61386-23

N

Approved in combination with protective conduit FI

N

Documents/Support Tools

Sales Drawing

Click here
