Catalog No. : CI2173

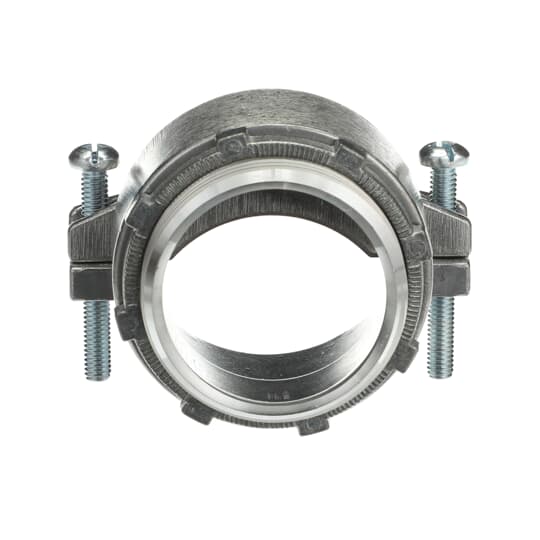

Description:  LOOMEX/BX CONNECTOR 2-1/2

UPC: 622538722737

Connector, Two Screw, Trade Size 2-1/2 Inches, Clamping Range 2.05 Inch - 3.07 Inch, Zinc Alloy, Suggested Application AC90 250/3-600/3, 250/4-300/4 and ACWU90: 1500/1, 500/2
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical fittings

Application

For 250/3-600/3, 250/4-300/4 ACWU90: 1500/1, 500/2

Specifications

Material

Aluminum

Classifications

Brand Name

Iberville

Standard

3313
3313

Dimensions

Size

2-1/2 Inches
ETIM EC001180 Screw connection for protective metallic hose

Nominal size in inch

2 1/2 inch

Model

Straight

Revolving thread

N

Construction type

External thread

Connection type screw connection to housing

Thread

One-piece

Y

Material housing

Zinc die-cast

Surface protection

Untreated

Approved in combination with protective conduit DIN EN 61386-23

N

Approved in combination with protective conduit FI

N
