Catalog No. : CI2106

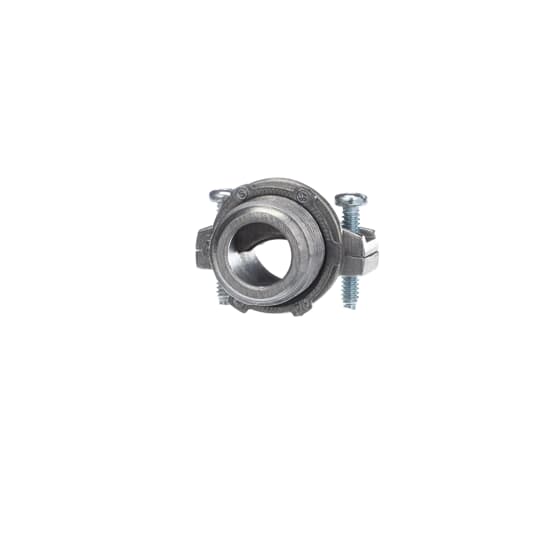

Description:  BX/FLEX CONNECTOR 3/4

UPC: 622538729064

Connector, Two Screw, Trade Size 3/4 Inch, Clamping Range 0.55 Inch - 0.78 Inch, Cast Aluminum Body and Clamp, Suggested Application AC90 10/2-8/2, 10/3-8/3, 12/4-10/4 and ACWU90: 3/1-2/1, 8/2, 10/3-8/3, 10/4, 12/5
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Electrical fittings

Application

Ordinary dry location

Specifications

Material

Aluminum

Classifications

Brand Name

Iberville

Standard

3313
3313

Dimensions

Size

3/4 Inch
ETIM EC001180 Screw connection for protective metallic hose

Nominal size in inch

3/4 inch

Model

Straight

Revolving thread

N

Construction type

External thread

Connection type screw connection to housing

Thread

One-piece

Y

Material housing

Other

Surface protection

Untreated

Approved in combination with protective conduit DIN EN 61386-23

N

Approved in combination with protective conduit FI

N
