Catalog No. : B520A-CFB

Description:  4/0 20 CU IN CEIL FAN BX NAIL/L-BKT

UPC: 782980008367

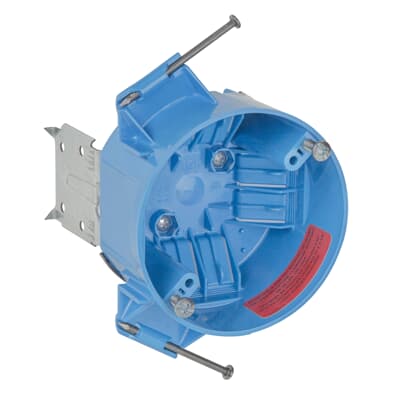

Ceiling Fax Box, 20 Cubic Inch, 4 Inch Diameter, 2-3/4 and 3-1/2 Light Fixture Hole Spacing, 3-1/2 inch Hole Spacing for Ceiling Fan Mounting, Suitable for Light Fixture Suport up to 50 lbs. or less, Suitable for Ceiling Fan Support up to 35 lbs. or less. ONLY USE the #10-32 provided #10-32 Screws for Mounting as Ceiling Fan, 2 Hour Fire Rated. L-Bracket. NM Sheathed Cable Range 14-2 AWG to 10-2 AWG. UL Listed. Package of 50.
View More View Less
For more info visit:  electrification.us.abb.com
  • Load rating: Light Fixture - 50 lbs, Ceiling Fan - 35 lbs.

Descriptors

Category

Outlet box

Specifications

Material

PVC

Color

Blue

Cubic Capacity

20 cu in

Classifications

Brand Name

Carlon

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant

Certification/Standard

CLASS File Number Class CCN Certificate Number Library Number
UL E11461 N/A QCMZ N/A N/A

Sustainability

Environmental product declaration

EPD STEEL CITY BRITISH STANDARDS (BS) BOXES EUC-AMA

EPD STEEL CITY UL WELDED BOXES EUC-AMA

EPD STEEL CITY BOXES AND DRAW-LINES US

End-of-life Instruction NuTek boxes

EPD STEEL CITY COVER US

Documents/Support Tools

Instruction Sheet

Click here
