Catalog No. : AVIE-15-4NN90
Description: BOLTED STUD TO FLAT AT 90 DEGREE
UPC: 75114392785

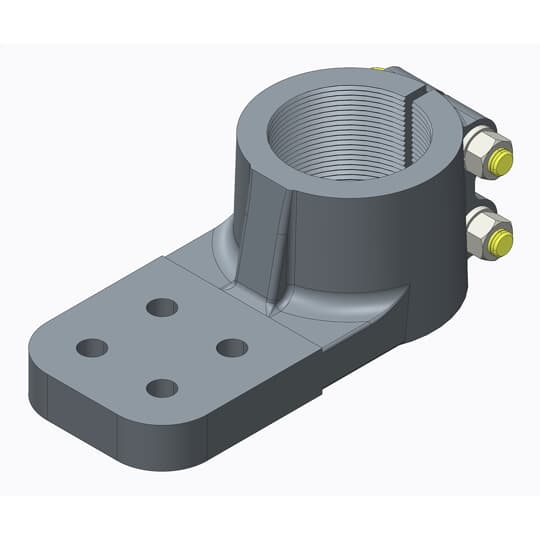

Bolted Aluminum, Type AVIE - Bolted Stud, Stud to Flat at 90 Degrees. 4 inch 4-Hole NEMA Flat. Stud Size 3 - 12 Threads Per Inch UNF-2B Through Hole, Total Length 9-1/4 inch x 4 inch Wide. Pad Thickness 15/16 inch. Four 9/16 inch diameter holes on 1-3/4 inch Centers. Pad has Rounded front corners. Connectors supplied with clamping hardware in accordance with NEMA Standard CC 1 ( Two Aluminum 1/2-13 x 3 inch Bolts, Two Aluminum 1/2 inch Lock Washers and Two Aluminum 1/2-13 inch Nuts.)
View More
View Less
For more info visit:
tnb.ca.abb.com/en/
Descriptors
|
Category |
Substation connector |
|
Special Features |
90 Degree Bend, Hardware included. |
Specifications
|
End Connection |
Mechanical |
|
Material |
Aluminum |
|
Finish |
Bare |
|
Insulation |
None |
Classifications
|
Brand Name |
Homac |
Dimensions
|
Size |
9-1/4 inch Long x 4 inch Wide |
