Alternate Catalog No. : ASL 350-48 TN

Catalog No. : ASL350-48TN

Description:  AL COMP STACK LUG 1 HOLE 350 TINPL

UPC: 783786696505

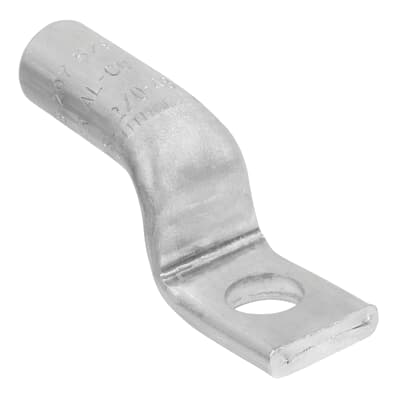

Tin-Plated Aluminum Compression Stacking Lug for Aluminum and Copper Terminations, One-Hole NEMA Pad, 350 kcmil AL-CU, 1/2 inch Bolt hole size. This part is not for stacking with AL 350-48. Length 2-17/64 inch. Pad 1-5/32 inch wide x 1-5/16 inch long x 23/64 inch thick. (1) 17/32 inch hole on pad. Barrel 1-3/4 inch long x 1-7/64 inch outside diameter. Oxide Inhibitor. Brown Cap.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made of Aluminum for High Strength and High Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Descriptors

Category

Wire connectors

Special Features

Dual rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor to prevent oxidation and keep out moisture. All lugs marked with conductor sizes and die references for easy installation.

Application

General Purpose Lugs for Aluminum and Copper Terminations

Specifications

Connection

Compression

Material

Aluminum

Finish

Tin-Plated

Insulation

None

Mounting

Bolt Size 1/2 in

Classifications

Brand Name

Homac

Standard

ANSI C119.4
ANSI C119.4

Dimensions

Size

4.275 inch long

Wire Size

350 kcmil

Documents/Support Tools

SDS

Click here
