Catalog No. : AL60

Description:  AL COMP LUG LB 2HOLE 1000-1033

UPC: 783786047369

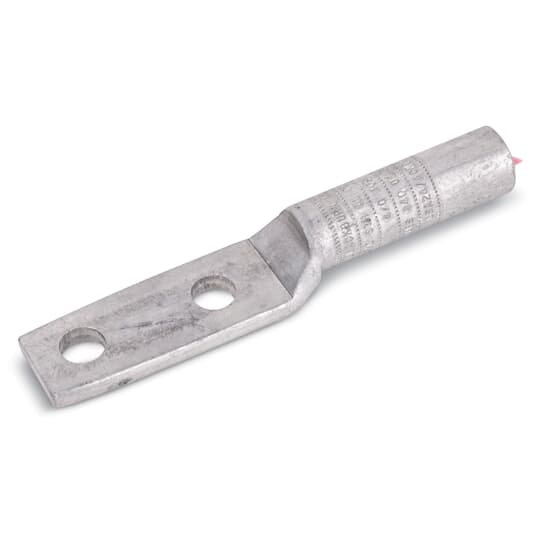

Aluminum Two-Hole Lug - Straight Long Barrel, Wire Range 900 54/7, 954 45/7 ASCR, 1000-1033 Stranded, 1/2 Inch Bolt Size, Blind-End, Hydraulic Dies: 1 1/2, 6024AH, 125H, 301, CSA 30. For Aluminum Conductor only.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • For Aluminum and Copper Conductors
  • Complete die and crimp information clearly indented on each lug. Install with standard tools and dies.
  • NEMA standard mounting holes. Use 1/2 inch mounting hardware for all sizes.
  • Prefilled with oxide inhibitor.
  • Extended barrel for additional crimping area or weather-seal for outdoor terminators.

Descriptors

Category

Cable or wire lug

Special Features

PreFilled with Compound. Complete Die and Crimp information clearly indented on each lug. Installed with standard tools and dies. Use 1/2 inch mounting hardware for all sizes.

Application

For Aluminum Conductor only.

Specifications

Cable Size

900 (54/7) ACSR kcmil , 954(45/7) ASCR kcmil , 1000 to 1033 kcmil

Number Of Holes

2

Material

Aluminum

Mounting

NEMA Standard Mounting Holes

Connection

Compression

Classifications

Brand Name

Blackburn

Compliance and Certifications

RoHS RoHS3 Compliant
REACH REACH 247 Compliant
TSCA TSCA Section 6(h) Compliant
ETIM EC001053 Crimp cable lug for aluminium conductors

Material

Aluminium

Sleeve form

Long
