Alternate Catalog No. : AL 500-58 TN

Catalog No. : AL500-58TN

Description:  AL TINPLT COMP LUG 1HOLE 500 5/8IN

UPC: 783786693955

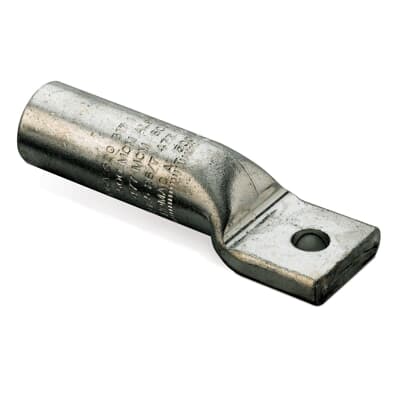

Tin Plated Aluminum One-Hole NEMA Lugs, 500 kcmil AL9CU, 477 kcmil, compact 600 kcmil, ACSR 397.5 (26/7) and 477 (18/1), bolt size 5/8, installing dies 106A, 300, 317, 1 5/16, 14A. Length 5-7/16 inch. Pad 1-3/4 inch wide x 1-1/2 inch long x 29/64 inch thick. (1) 9/16 inch diameter hole. Barrel 2-15/16 inch long x 1-5/16 inch outside Diameter. Oxide Inhibitor. Pink Cap.
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Dual-Rated for Use with Aluminum and Copper Conductors.
  • Made of Aluminum for High Strength and High Conductivity.
  • Prefilled with Oxide Inhibitor to Prevent Oxidation and Keep Out Moisture.
  • All Lugs Marked with Conductor Size and Die References for Easy Identification.
  • Meets or Exceeds ANSI C119.4 Specifications.

Descriptors

Category

Wire connectors

Special Features

Dual Rated for use with Aluminum and Copper Conductors. Prefilled with Oxide Inhibitor. Marked with Conductor Sizes and Die Reference. Meet or Exceed ANSI C119.4 Specifications.

Application

General Purpose Lugs for Aluminum and Copper Terminations

Specifications

Connection

Compression

Material

Aluminum

Finish

Tin Plated

Insulation

None

Temperature Rating

90 C

Classifications

Brand Name

Homac

Standard

ANSI C119.4
ANSI C119.4

Dimensions

Size

5-7/16 inch long x 1-3/4 inch wide

Wire Size

477 to 500 kcmil , 600 kcmil , 379.5(26/7) ACSR AWG , 477(18/1) ACSR AWG

Documents/Support Tools

SDS

Click here

Sales Drawing

Click here
