Catalog No. : AFM-2-BRS

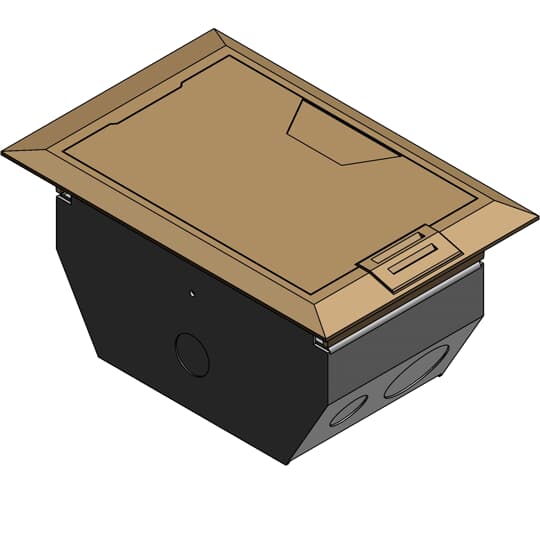

Description:  AFM-2 WITH SOLID BRASS COVER

UPC: 785991050783

Two Compartment Raised Access Floor Module, 75 Cubic Inches, Floor Cut Out Length 7-1/8 Inches, Width 4-1/8 Inches, Cover Size Length 6-3/4 Inches, Width 3-7/8 Inches, Depth 4 Inches, Galvanized Steel with Brass Cover
View More View Less
For more info visit:  tnb.ca.abb.com/en/

Descriptors

Category

Floor boxes

Special Features

Supplied with 1-AFP-2A single duplex receptacle plate

Application

Access floor modules can be used with most types of raised floors including ridged or waffled floor panels, carpet or tile

Specifications

Material

Galvanized Steel

Knockouts

Yes

Classifications

Brand Name

Steel City

Standard

UL E2969
UL E2969

ETIM EC000024 Installation box for underfloor-installation

Cover model

Rectangular

Suitable for wet cleaning

N

Suitable for hollow floor

Y

Material

Other

With opening carpeting

N

Min. built-in depth

90.4748 mm

Colour

Other

Length external dimension

180.975 mm

Width outside dimension

123.825 mm

Length built-in dimension

171.45 mm

Width built-in dimension

104.775 mm
