Alternate Catalog No. : ABC 500-33

Catalog No. : ABC500-33

Description:  SETSCREW PED CONN 6-500 6OUTL

UPC: 783786682584

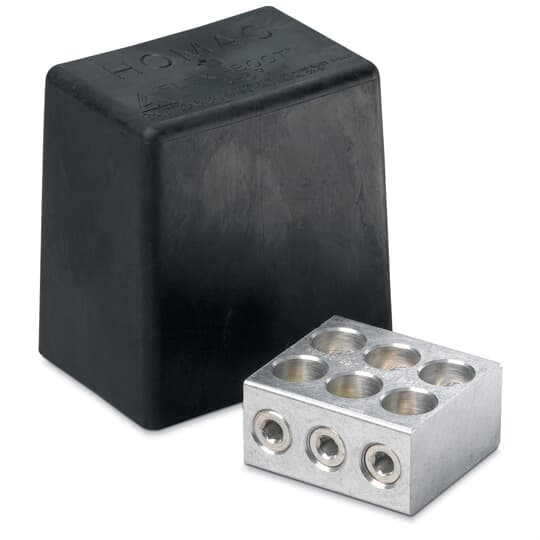

Aluminum Set-Screw Bar Pedestal Connectors - Double-Row Bar cable range 6-500, length 3-1/16 in, width 2-3/4 in, boot no. FB 33, outlets 6
View More View Less
For more info visit:  tnb.ca.abb.com/en/
  • Dual-Rated to Accept Aluinum or Copper Conductors
  • Ball-bottom screws ensure Maximum Conductor Contact Pressure and Break up Interstrand Oxides
  • Meets or Exceeds ANSI C119.4 Specifications

Descriptors

Category

Wire terminal disconnect

Special Features

High Strength Aluminum Alloy - Contant Bolting Pressure on Conductors maintained. Ball-Bottom Screws ensure maximum conductor contact pressure. Also breaks up interstrand oxides.

Application

Designed for use in Above Grade Pedestals

Specifications

Material

Aluminum

Insulation

None

Mounting

Pedestal

Classifications

Brand Name

Homac

Standard

ANSI C119.4 Class A Tests
ANSI C119.4 Class A Tests

Dimensions

Wire Size

#6 to 500 kcmil

Compliance and Certifications

RoHS RoHS3 Compliant
TSCA TSCA Section 6(h) Compliant
